MF-RHT450, MF-RHT050 Datasheet - Bourns

MF-RHT450 High Temperature PTC Resettable Fuses

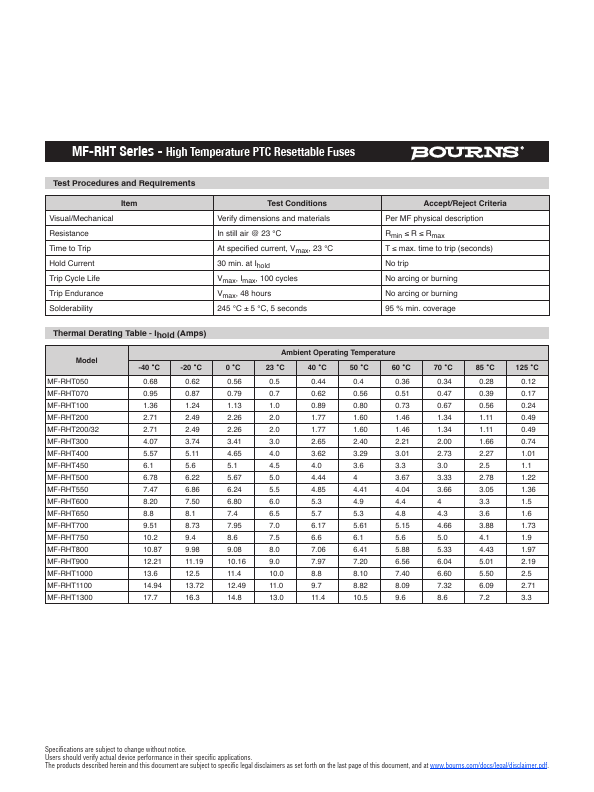

Rmin ≤ R ≤ Rmax T ≤ max. time to trip (seconds) No trip No arcing or burning No arcing or burning 95 % min. coverage Thermal Derating Table - Ihold (Amps) Model MF-RHT050 MF-RHT070 MF-RHT100 MF-RHT200 MF-RHT200/32 MF-RHT300 MF-RHT400 MF-RHT450 MF-RHT500 MF-RHT550 MF-RHT600 MF-RHT650 MF-RHT700 MF-R.

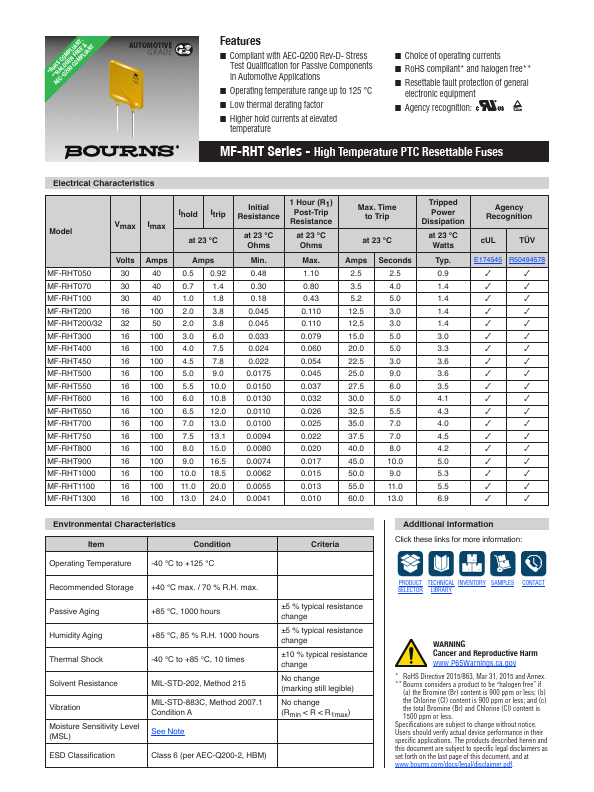

MF-RHT450 Features

* n Compliant with AEC-Q200 Rev-D- Stress Test Qualification for Passive Components in Automotive Applications n Operating temperature range up to 125 °C n Low thermal derating factor n Higher hold currents at elevated temperature n Choice of operating currents n RoHS compliant

* and halogen free

MF-RHT050-Bourns.pdf
