MF-RHT700

High Temperature PTC Resettable Fuses

MF-RHT700 Features

* n Compliant with AEC-Q200 Rev-D- Stress Test Qualification for Passive Components in Automotive Applications n Operating temperature range up to 125 °C n Low thermal derating factor n Higher hold currents at elevated temperature n Choice of operating currents n RoHS compliant

* and halogen free

MF-RHT700 General Description

Rmin ≤ R ≤ Rmax T ≤ max. time to trip (seconds) No trip No arcing or burning No arcing or burning 95 % min. coverage Thermal Derating Table - Ihold (Amps) Model MF-RHT050 MF-RHT070 MF-RHT100 MF-RHT200 MF-RHT200/32 MF-RHT300 MF-RHT400 MF-RHT450 MF-RHT500 MF-RHT550 MF-RHT600 MF-RHT650 MF-RHT700 MF-R.

MF-RHT700 Datasheet (1.06 MB)

Rating: 1 ★ (1 votes)

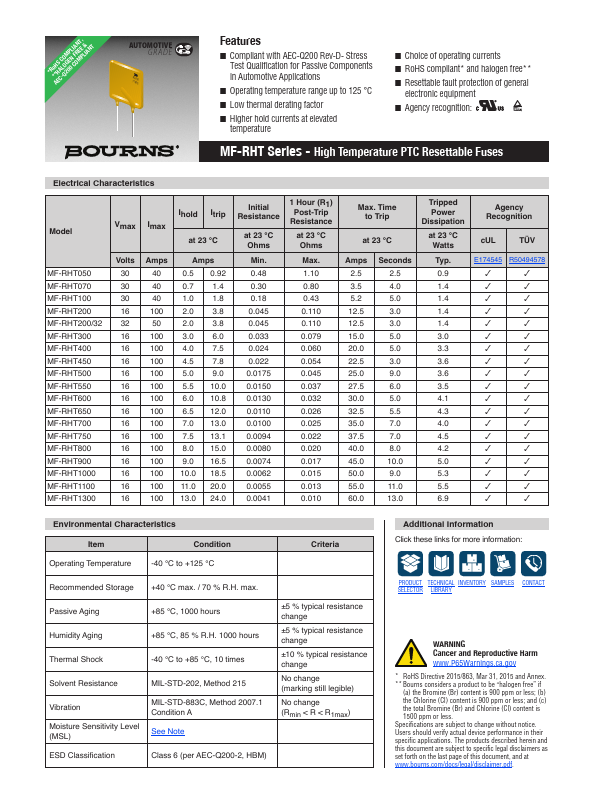

Preview of MF-RHT700 PDF

Datasheet Details

Part number:

MF-RHT700

Manufacturer:

Bourns

File Size:

1.06 MB

Description:

High temperature ptc resettable fuses.

📁 Related Datasheet

MF-RHT750 High Temperature PTC Resettable Fuses (Bourns)

MF-RHT050 High Temperature PTC Resettable Fuses (Bourns)

MF-RHT070 High Temperature PTC Resettable Fuses (Bourns)

MF-RHT100 High Temperature PTC Resettable Fuses (Bourns)

MF-RHT1000 High Temperature PTC Resettable Fuses (Bourns)

MF-RHT1100 High Temperature PTC Resettable Fuses (Bourns)

MF-RHT1300 High Temperature PTC Resettable Fuses (Bourns)

MF-RHT200 High Temperature PTC Resettable Fuses (Bourns)

MF-RHT300 High Temperature PTC Resettable Fuses (Bourns)

MF-RHT400 High Temperature PTC Resettable Fuses (Bourns)

TAGS

MF-RHT700 High Temperature PTC Resettable Fuses Bourns

Image Gallery

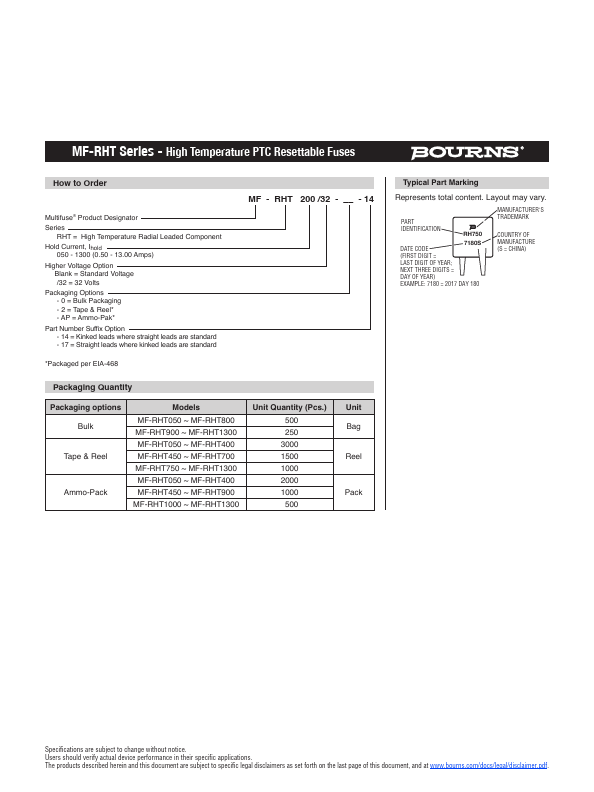

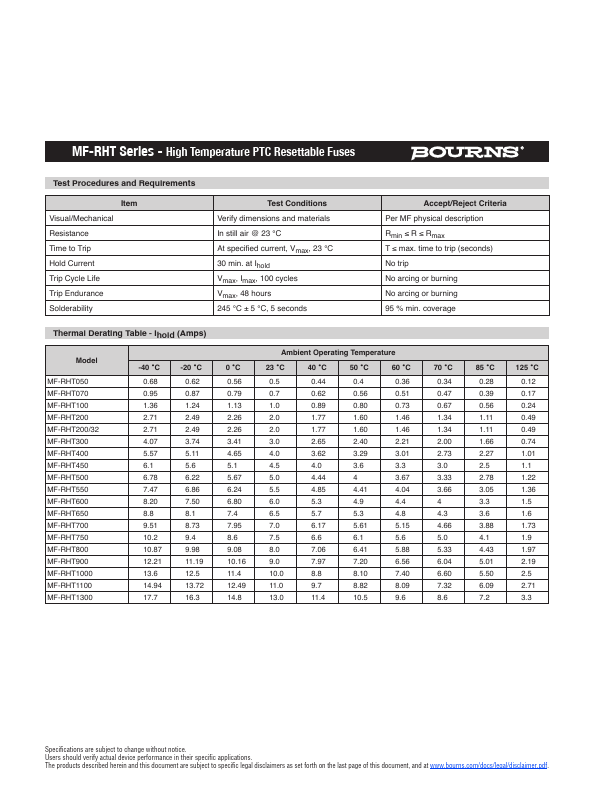

MF-RHT700 Datasheet Preview Page 2 MF-RHT700 Datasheet Preview Page 3
