MF-USHT050KX PTC Resettable Fuses

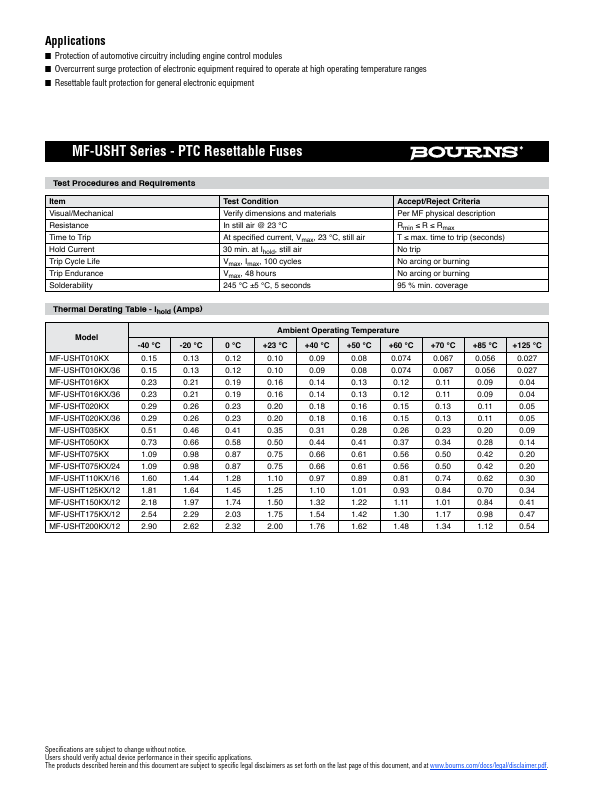

Resistance In still air @ 23 °C Rmin ≤ R ≤ R1max Time to Trip At specified current, Vmax, 23 °C T ≤ max. time to trip (seconds) Hold Current 30 min. at Ihold No trip Trip Cycle Life Vmax, Imax, 100 cycles No arcing or burning Trip Endurance Vmax, 48 hours No arcing or burning Solderability ANSI/J-.

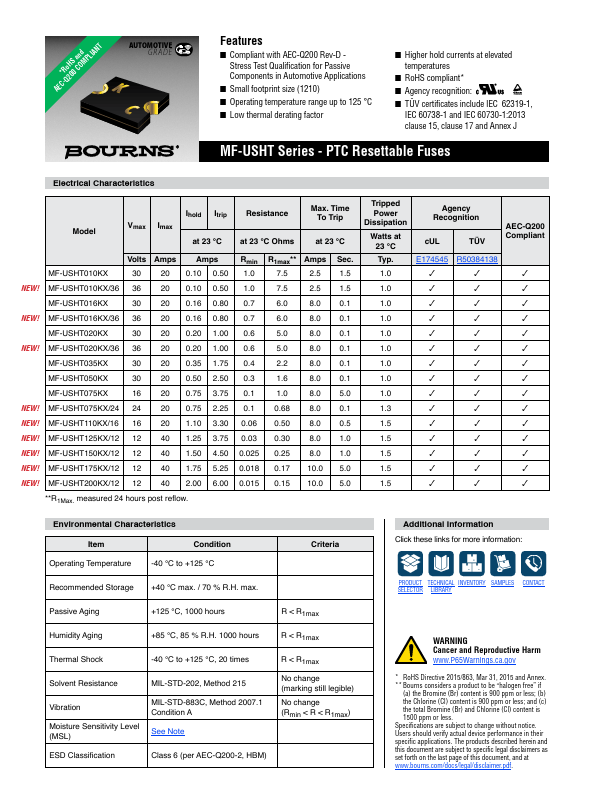

MF-USHT050KX Features

* n Compliant with AEC-Q200 Rev-C - Stress Test Qualification for Passive Components in Automotive Applications n Small footprint size (1210) n Operating temperature range up to 125 °C n Low thermal derating factor n Higher hold currents at elevated temperatures n RoHS compliant

* n Ag

MF-USHT050KX Datasheet (720.46 KB)
