Datasheet Specifications
- Part number
- RLB9012
- Manufacturer
- Bourns
- File Size
- 312.80 KB
- Datasheet
- RLB9012-Bourns.pdf
- Description
- Radial Inductor

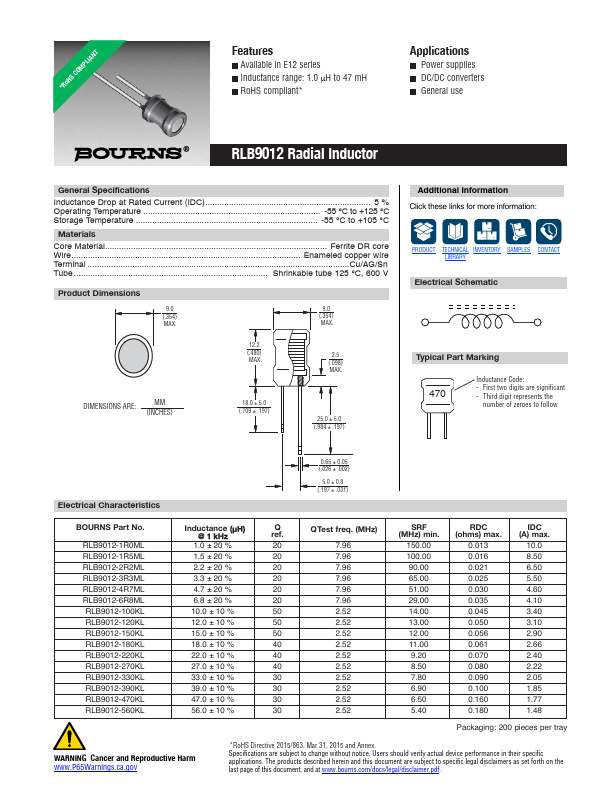

Description
*RoHS COMPLIANT .
Features
* Available in E12 series Inductance range: 1.0 μH to 47 mH RoHS compliantApplications
* Power supplies DC/DC converters General use RLB9012 Radial Inductor General Specifications Inductance Drop at Rated Current (IDC) 5 % Operating Temperature -55 °C to +125 °C Storage Temperature -55 °C to +105 °C Materials Core Material Ferrite DR core Wire Enameled copper wire Terminal Cu/AG/SnRLB9012 Distributors
