SMLJ120A, SMLJ5.0A Datasheet - Bourns

SMLJ120A Transient Voltage Suppressor Diode

UL File Number: E153537 Electrical Characteristics (@ TA = 25 °C Unless Otherwise Noted) Parameter Symbol Value Minimum Peak Pulse Power Dissipation (TP = 1 ms) (Note 1,2) Peak Forward Surge Current 8.3 ms Single Half Sine Wave Superimposed on Rated Load (JEDEC Method) (Note 3) PPK IFSM 300.

SMLJ120A Features

* n RoHS compliant

* n Surface Mount SMC package n Standoff Voltage: 5.0 to 170 volts n Power Dissipation: 3000 watts n Typical temperature coefficient: DVBR = 0.1 % x VBR @ 25 °C x DT Applications n IEC 61000-4-2 ESD (Min. Level 4) n IEC 61000-4-4 EFT n IEC 61000-4-5 Surge SMLJ Transient Voltag

SMLJ5.0A-bourns.pdf

This datasheet PDF includes multiple part numbers: SMLJ120A, SMLJ5.0A. Please refer to the document for exact specifications by model.

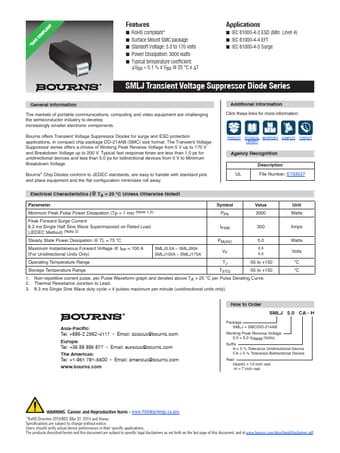

SMLJ120A Datasheet Preview Page 2 SMLJ120A Datasheet Preview Page 3

Datasheet Details

Part number:

SMLJ120A, SMLJ5.0A

Manufacturer:

Bourns

File Size:

582.47 KB

Description:

Transient voltage suppressor diode.

Note:

This datasheet PDF includes multiple part numbers: SMLJ120A, SMLJ5.0A.
Please refer to the document for exact specifications by model.
