SRP1265CC - Shielded Power Inductors

Bourns

📥 Download Datasheet

SRP1265CC Datasheet Preview — Preview of SRP1265CC PDF

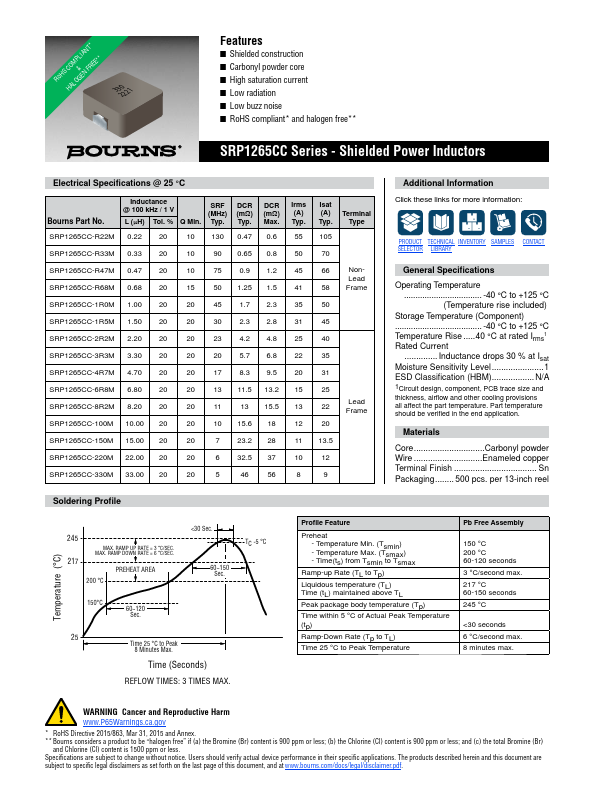

datasheet Preview Page 2

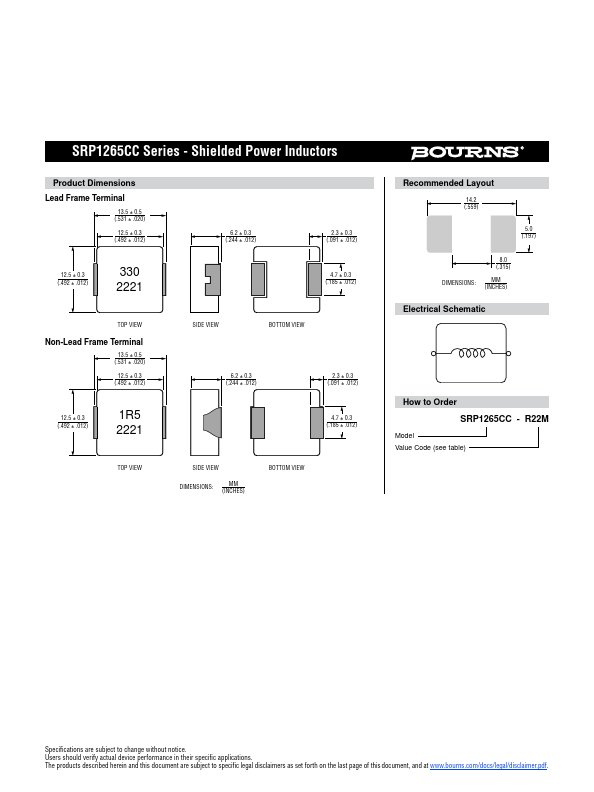

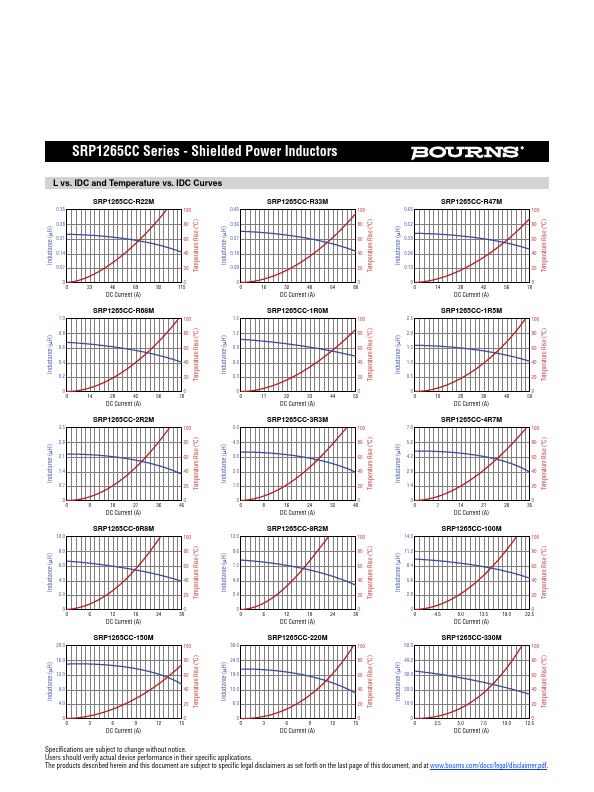

datasheet Preview Page 3

Datasheet Details

Part number: SRP1265CC
Manufacturer: Bourns
File Size: 147.04 KB
Datasheet: SRP1265CC-Bourns.pdf
Description: Shielded Power Inductors

SRP1265CC Product details

Features

Shielded construction.
Carbonyl powder core.
High saturation current.
Low radiation.
Low buzz noise.
RoHS compliant.
and halogen free.
SRP1265CC Series - Shielded Power Inductors Electrical Specifications @ 25 °C Bourns Part No. Inductance @ 100 kHz / 1 V SRF (MHz) L (μH) Tol. % Q Min. Typ. SRP1265CC-R22M 0.22 20 10 130 DCR (mΩ) Typ. 0.47 DCR (mΩ) Max. 0.6 Irms (A) Typ. 55 Isat (A) Typ. Terminal Type 105 SRP1265CC-R33M 0.33 20 10 90 0.65 0.
