SRP7028CC - Shielded Power Inductors

Bourns

📥 Download Datasheet

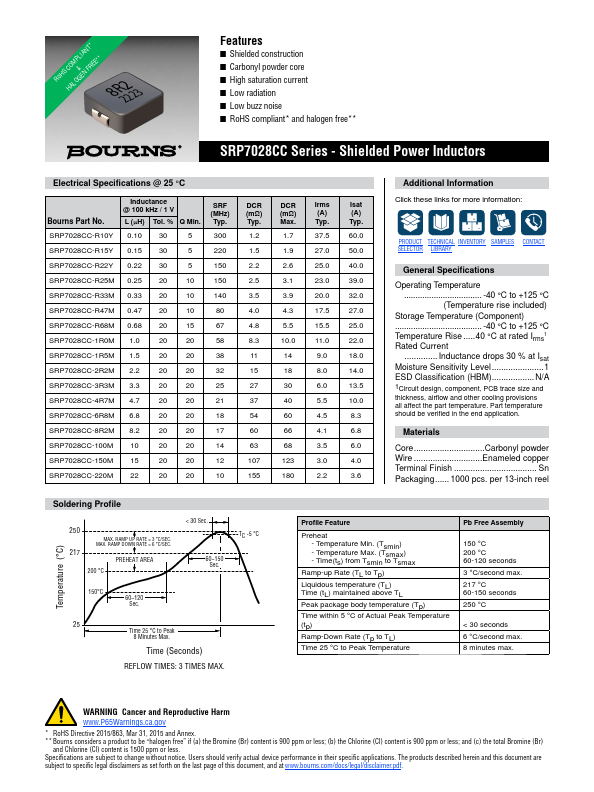

SRP7028CC Datasheet Preview — Preview of SRP7028CC PDF

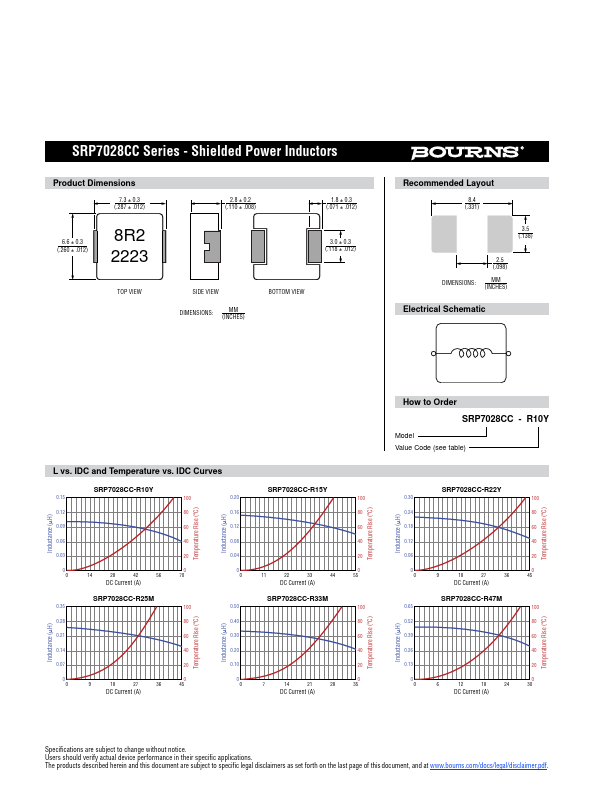

datasheet Preview Page 2

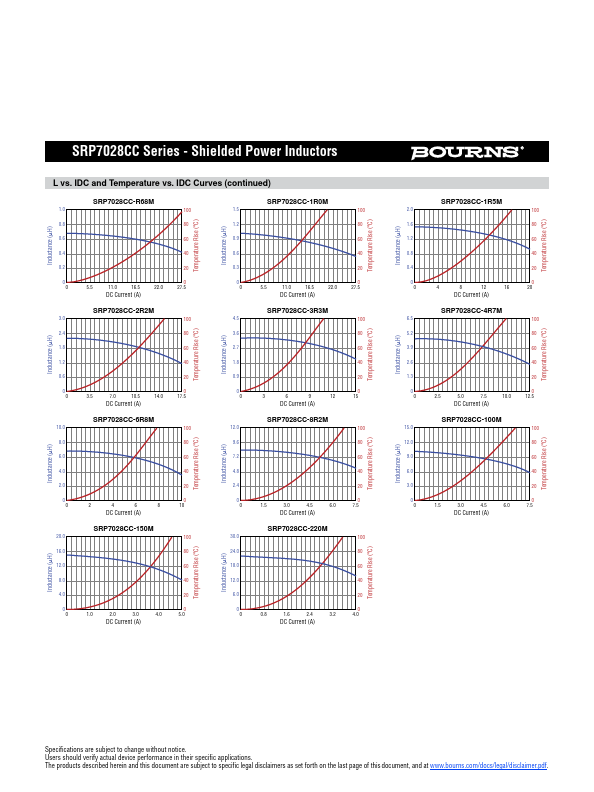

datasheet Preview Page 3

Datasheet Details

Part number	SRP7028CC
Manufacturer	Bourns
File Size	149.81 KB
Description	Shielded Power Inductors
Datasheet	SRP7028CC-Bourns.pdf

SRP7028CC Product details

Features

Shielded construction.
Carbonyl powder core.
High saturation current.
Low radiation.
Low buzz noise.
RoHS compliant.
and halogen free.
SRP7028CC Series - Shielded Power Inductors Electrical Specifications @ 25 °C Bourns Part No. SRP7028CC-R10Y Inductance @ 100 kHz / 1 V L (μH) Tol. % Q Min. 0.10 30 5 SRF (MHz) Typ. 300 SRP7028CC-R15Y 0.15 30 5 220 SRP7028CC-R22Y 0.22 30 5 150 SRP7028CC-R25M 0.25 20 10 150 SRP7028CC-R33M 0.33 20 10 14.
