SRP7030CA - Shielded Power Inductors

Name: SRP7030CA
SKU: SRP7030CA-1577018

Bourns

The SRP7030CA by Bourns is a Shielded Power Inductors. Below is the official datasheet preview.

Datasheet Details

Part number	SRP7030CA
Manufacturer	Bourns
File Size	249.46 KB
Description	Shielded Power Inductors
Datasheet	SRP7030CA-Bourns.pdf

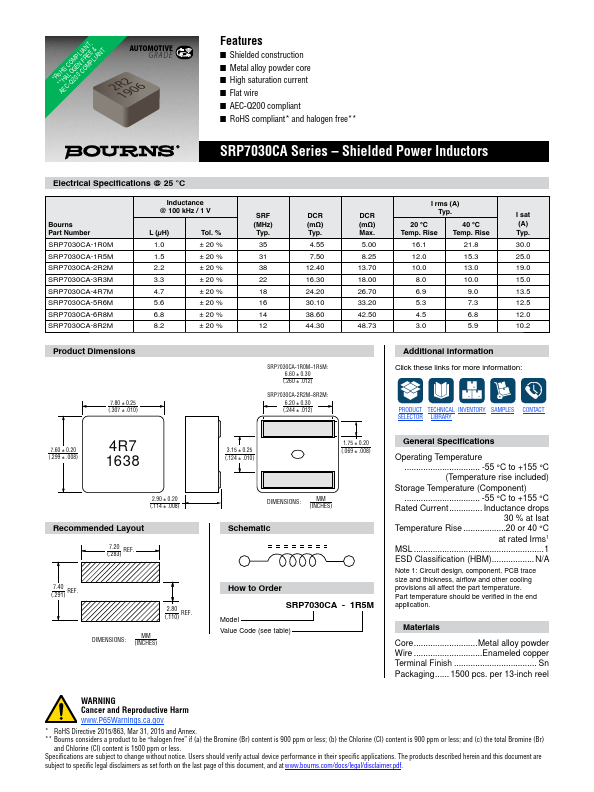

Additional preview pages of the SRP7030CA datasheet.

Shielded construction.
Metal alloy powder core.
High saturation current.
Flat wire.
AEC-Q200 compliant.
RoHS compliant.
and halogen free.
SRP7030CA Series.
Shielded Power Inductors Electrical Specifications @ 25 °C Bourns Part Number SRP7030CA-1R0M SRP7030CA-1R5M SRP7030CA-2R2M SRP7030CA-3R3M SRP7030CA-4R7M SRP7030CA-5R6M SRP7030CA-6R8M SRP7030CA-8R2M Inductance @ 100 kHz / 1 V L (μH) 1.0 1.5 2.2 3.3 4.7 5.6 6.8 8.2 Tol. % ± 20 % ± 20 %.
