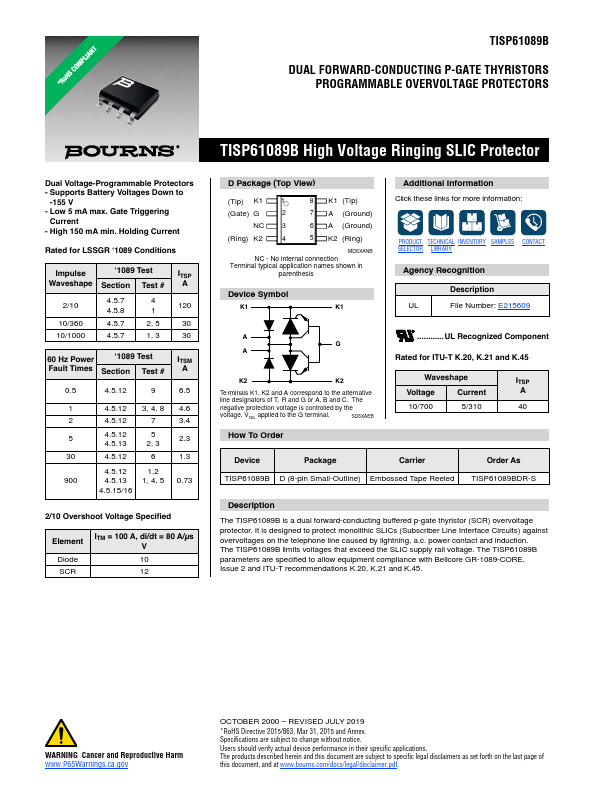

TISP61089B High Voltage Ringing SLIC Protector

UL File Number: E215609 A G A K2 K2 Te rminals K1, K2 and A correspond to the alternative line designators of T, R and G or A, B and C. The negative protection voltage is controlled by the voltage, VGG, applied to the G terminal. SD6XAEB How To Order UL Recognized Component Rated for IT.

TISP61089B DUAL FORWARD-CONDUCTING P-GATE THYRISTORS PROGRAMMABLE OVERVOLTAGE PROTECTORS TISP61089B High Voltage Ringing SLIC Protector Dual Voltage-Programmable Protectors - Supports Battery Voltages Down to -155 V - Low 5 mA max. Gate Triggering Current - High 150 mA min. Holding Current Rated for LSSGR ‘1089 Conditions Impulse ‘1089 Test ITSP Waveshape Section Test # A 2/10 4.5.7 4.5.8 4 1 120 10/360 4.5.7 2, 5 30 10/1000 4.5.7 1, 3 30 60 Hz Power ‘1089 Test ITSM Fault T.

TISP61089B-Bourns.pdf

TISP61089B Datasheet Preview — Preview of TISP61089B PDF

Datasheet Details

Part number:

TISP61089B

Manufacturer:

Bourns

File Size:

486.40 KB

Description:

High voltage ringing slic protector.
