FT813Q, FT810Q - Advanced Embedded Video Engine

📥 Download Datasheet

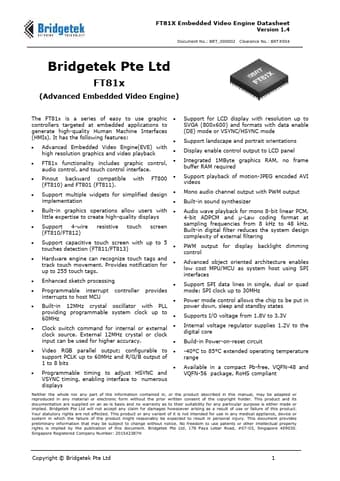

FT813Q Datasheet Preview — This datasheet PDF includes multiple part numbers: FT813Q, FT810Q. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	FT813Q, FT810Q
Manufacturer	Bridgetek
File Size	1.23 MB
Description	Advanced Embedded Video Engine
Datasheet	FT810Q-Bridgetek.pdf
Note	This datasheet PDF includes multiple part numbers: FT813Q, FT810Q. Please refer to the document for exact specifications by model.

FT813Q Product details

Features

Advanced Embedded Video Engine(EVE) with high resolution graphics and video playback.
FT81x functionality includes graphic control, audio control, and touch control interface.
Pinout backward compatible with FT800 (FT810) and FT801 (FT811).
Support multiple widgets for simplified design implementation.
Support for LCD display with resolution up to SVGA (800x600) and formats with data enable (DE) mode or VSYNC/HSYNC mode Support l.
