SS52B SCHOTTKY BARRIER RECTIFIER

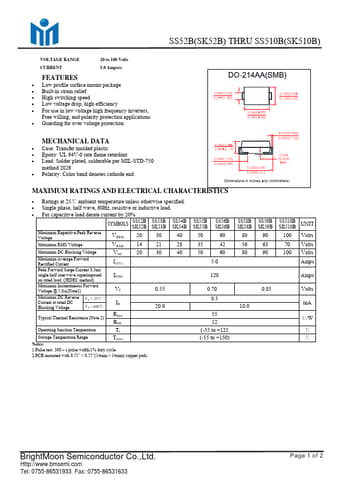

📥 Download Datasheet Datasheet Preview Page 1

Description

SS52B(SK52B) THRU SS510B(SK510B) VOLTAGE RANGE CURRENT 20 to 100 Volts 5.0 Ampere .

📥 Download Datasheet

Preview of SS52B PDF
datasheet Preview Page 2

Features

* Low profile surface mount package
* Built-in strain relief
* High switching speed
* Low voltage drop, high efficiency

Applications

* Guarding for over voltage protection MECHANICAL DATA
* Case: Transfer molded plastic
* Epoxy: UL 94V-0 rate flame retardant
* Lead: Solder plated, solderable per MIL-STD-750 method 2026
* Polarity: Color band denotes cathode end Dimensions in inches and (millimeters) MAXIMUM
