3KP14CA, 3KP5.0A - Transient Voltage Suppressors

Brightking

Datasheet Details

Part number: 3KP14CA, 3KP5.0A
Manufacturer: Brightking
File Size: 274.09 KB

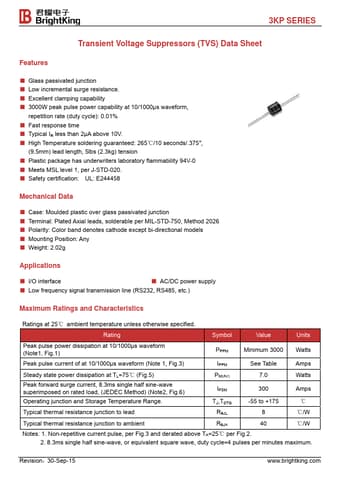

Datasheet: 3KP5.0A-Brightking.pdf
Description: Transient Voltage Suppressors
Note: This datasheet PDF includes multiple part numbers: 3KP14CA, 3KP5.0A.
Please refer to the document for exact specifications by model.

Glass passivated junction.
Low incremental surge resistance.
Excellent clamping capability.
3000W peak pulse power capability at 10/1000μs waveform, repetition rate (duty cycle): 0.01%.
Fast response time.
Typical IR less than 2μA above 10V.
High Temperature soldering guaranteed: 265℃/10 seconds/.375″, (9.5mm) lead length, 5lbs (2.3kg) tension.
Plastic package has underwriters laboratory flammability 94V-0.
Meets MSL level 1, per J-STD-020.
S.
