3KP5.0A - Transient Voltage Suppressors

3KP5.0A Description

3KP SERIES Transient Voltage Suppressors (TVS) Data Sheet .

3KP5.0A Features

* Glass passivated junction
* Low incremental surge resistance.
* Excellent clamping capability
* 3000W peak pulse power capability at 10/1000μs waveform, repetition rate (duty cycle): 0.01%
* Fast response time
* Typical IR less than 2μA above 10V.
* High Temperature sol

3KP5.0A Applications

* I/O interface
* AC/DC power supply
* Low frequency signal transmission line (RS232, RS485, etc. ) Maximum Ratings and Charac

📥 Download Datasheet

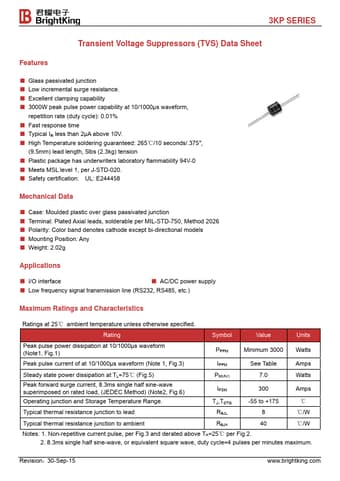

Preview of 3KP5.0A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
3KP5.0A
Manufacturer
Brightking
File Size
274.09 KB
Datasheet
3KP5.0A-Brightking.pdf
Description
Transient Voltage Suppressors
