511KD20 - Zinc Oxide Varistor

Product Overview

Brightking

Part number	511KD20
Manufacturer	Brightking
File Size	264.67 KB
Description	Zinc Oxide Varistor
Datasheet	511KD20 Datasheet

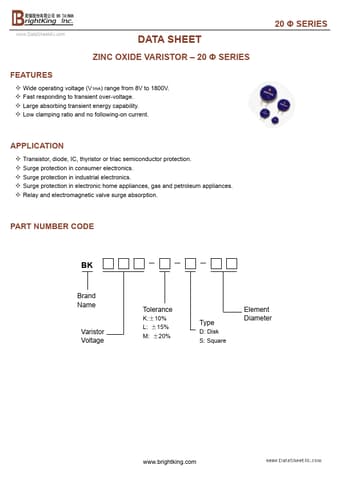

Additional preview pages of the 511KD20 datasheet.

The voltage between two terminals with the specified measuring current 1mA.DC applied is call Vb.

Wide operating voltage (V1mA) range from 8V to 1800V. Fast responding to transient over-voltage. Large absorbing transient energy capability. Low clamping ratio and no following-on current.
