LAT52C05L02

Electrostatic Discharged Protection

LAT52C05L02 Features

* IEC61000-4-2 ESD 15KV Air, 8KV contact compliance

* SOT-523 surface mount package

* Protects two high speed data lines

* Working voltage: 5V

* Low capacitance and clamping voltages

* Low leakage current

* Solid-state silicon avalanche technology

* Lead Free/RoHS com

LAT52C05L02 General Description

This is ultra low capacitance TVS arrays designed to protect high speed data interfaces. It has been specifically designed to protect sensitive components which is connected to high-speed data and transmission lines from overvoltage caused by electrostatic (ESD), cable discharge events (CDE) and ele.

LAT52C05L02 Datasheet (248.45 KB)

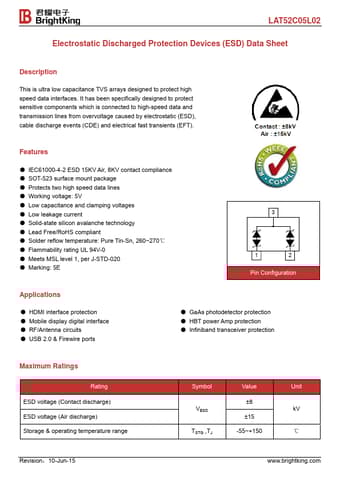

Preview of LAT52C05L02 PDF

Datasheet Details

Part number:

LAT52C05L02

Manufacturer:

Brightking

File Size:

248.45 KB

Description:

Electrostatic discharged protection.
