SET23A36L02 Electrostatic Discharged Protection

Brightking’s SET23AXXL02 series of transient voltage suppressor (TVS) are designed to protect components which are connected to data and transmission lines from voltage surges caused by electrostatic discharge (ESD), electrical fast transients (EFT) and lightning. TVS diodes are characterized by the.

SET23A36L02 Features

* IEC61000-4-2 ESD 15KV Air, 8KV contact compliance

* SOT-23 surface mount package

* Protects one bidirectional line or two unidirectional lines

* Working voltage: 3.3V, 5V, 12V, 15V, 24V and 36V

* Low leakage current

* Low operating and clamping voltages

* Solid-state si

SET23A03L02-Brightking.pdf

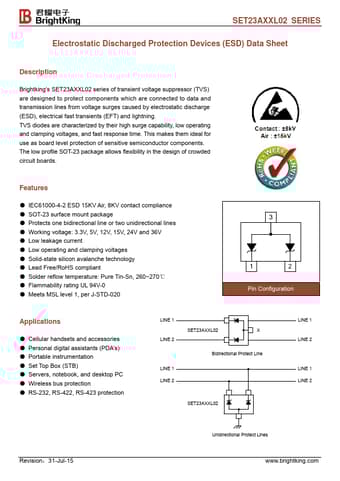

SET23A36L02 Datasheet Preview — This datasheet PDF includes multiple part numbers: SET23A36L02, SET23A03L02. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SET23A36L02, SET23A03L02

Manufacturer:

Brightking

File Size:

252.71 KB

Description:

Electrostatic discharged protection.

Note:

This datasheet PDF includes multiple part numbers: SET23A36L02, SET23A03L02.
Please refer to the document for exact specifications by model.
