ACPL-C87AT - Automotive High Precision DC Voltage Isolation Sensor

Description

The Broadcom® ACPL-C87AT/C87BT isolation sensors utilize superior optical coupling technology, with sigma-delta (-) analog-to-digital converter, chopper stabilized amplifiers, and a fully differential circuit topology to provide unequaled isolation-mode noise rejection, low offset, high gain accur

Features

  • high input impedance and operate with full span of analog input voltage up to 2.46V. The shutdown feature provides power saving and can be controlled from external source, such as microprocessor. The high common-mode transient immunity (15 kV/μs) of the ACPL-C87AT/C87BT maintains the precision and stability needed to accurately monitor DC rail voltage in high noise motor control environments. This galvanic safe isolation solution is delivered in a compact, surface mount stretched SO-8 (SSO-8) pa.

📥 Download Datasheet

Datasheet Details

Part number ACPL-C87AT
Manufacturer Broadcom
File Size 2.11 MB
Description Automotive High Precision DC Voltage Isolation Sensor
Datasheet download datasheet ACPL-C87AT Datasheet

📁 Similar Datasheet

  • ACPL-C87AT - ACPL-C87AT (AVAGO)
  • ACPL-C87A - Precision Optically Isolated Voltage Sensor (AVAGO)
  • ACPL-C870 - Precision Optically Isolated Voltage Sensor (AVAGO)
  • ACPL-C87B - Precision Optically Isolated Voltage Sensor (AVAGO)
  • ACPL-C87BT - ACPL-C87AT (AVAGO)
  • ACPL-C87H - Precision Optically Isolated Voltage Sensor (AVAGO)
  • ACPL-C61L - Ultra Low Power 10 MBd Digital CMOS Optocoupler (AVAGO)
  • ACPL-C780 - Miniature Isolation Amplifiers (AVAGO)
  • ACPL-C784 - Miniature Isolation Amplifiers (AVAGO)
  • ACPL-C78A - Miniature Isolation Amplifiers (AVAGO)
Other Datasheets by Broadcom
  • ACPL-C87BT - Automotive High Precision DC Voltage Isolation Sensor
  • ACPL-C720 - Precision Miniature Isolation Amplifiers
  • ACPL-C72A - Precision Miniature Isolation Amplifiers
  • ACPL-C72B - Precision Miniature Isolation Amplifiers
  • ACPL-C740 - Optically Isolated Sigma-Delta Modulator
  • ACPL-C799 - Sigma-Delta Modulator
  • ACPL-054L - Digital Optocoupler
  • ACPL-064L - Low-Power 10-MBd Digital CMOS Optocouplers

Full PDF Text Transcription

Click to expand full text

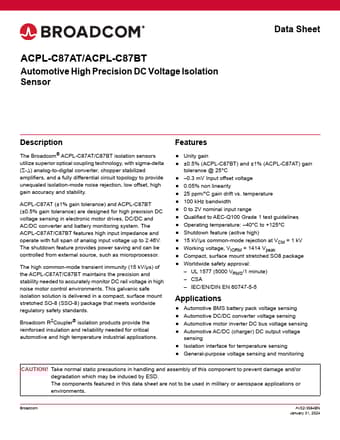

ACPL-C87AT/ACPL-C87BT Automotive High Precision DC Voltage Isolation Sensor Data Sheet Description The Broadcom® ACPL-C87AT/C87BT isolation sensors utilize superior optical coupling technology, with sigma-delta (-) analog-to-digital converter, chopper stabilized amplifiers, and a fully differential circuit topology to provide unequaled isolation-mode noise rejection, low offset, high gain accuracy and stability. ACPL-C87AT (±1% gain tolerance) and ACPL-C87BT (±0.5% gain tolerance) are designed for high precision DC voltage sensing in electronic motor drives, DC/DC and AC/DC converter and battery monitoring system. The ACPL-C87AT/C87BT features high input impedance and operate with full span of analog input voltage up to 2.46V.
