AERD-N1BB Infrared SMT Round Lamps

AERD-N1AB/N1BB/N1CB/N1DB Infrared SMT Round Lamps Data Sheet Overview The LEDs in the Broadcom® infrared LED series are essentially conventional infrared though-hole LEDs in the form of surface-mount devices. The LEDs can be assembled using common SMT assembly processes and are compatible with an industrial reflow soldering process. Besides being packaged in a surface mount platform enabling solder reflow, the IR SMT lamps also offer a multiple range of optics design to address different appli.

AERD-N1BB Features

* needed for semiconductor components. Features

* Clear lens

* Tall package for easier potting

* Low power consumption

* Typical peak wavelength: 850 nm

* Typical viewing angle: 10°, 18°, 30°, and 40° Applications

* Light curtains

* Traffic control

* Industrial sensing

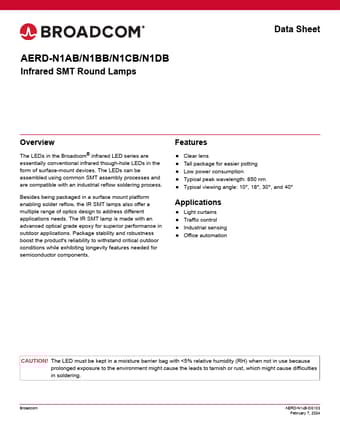

AERD-N1AB-Broadcom.pdf

AERD-N1BB Datasheet Preview — This datasheet PDF includes multiple part numbers: AERD-N1BB, AERD-N1AB. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

AERD-N1BB, AERD-N1AB

Manufacturer:

Broadcom

File Size:

752.26 KB

Description:

Infrared smt round lamps.

Note:

This datasheet PDF includes multiple part numbers: AERD-N1BB, AERD-N1AB.
Please refer to the document for exact specifications by model.
