ASMT-UWB1-NX3D2, ASMT-UWB1-NX302, OneWhite Surface-Mount PLCC-2 LED Indicator

ASMT-UWB1-Nxxxx OneWhite Surface-Mount PLCC-2 LED Indicator Data Sheet .
This family of SMT LEDs is packaged in the industry standard PLCC-2 package.

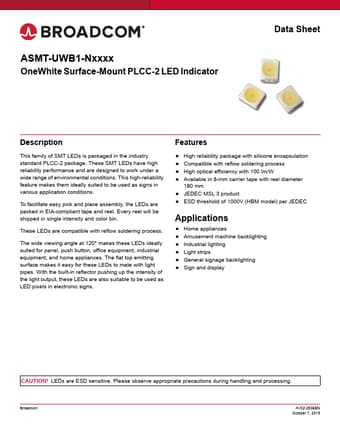

datasheet Preview Page 1 from Datasheet4u.com

ASMT-UWB1-NX302-Broadcom.pdf

ASMT-UWB1-NX3D2 Datasheet Preview — This datasheet PDF includes multiple part numbers: ASMT-UWB1-NX3D2, ASMT-UWB1-NX302. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ASMT-UWB1-NX3D2, ASMT-UWB1-NX302

Manufacturer:

Broadcom

File Size:

735.94 KB

Description:

OneWhite Surface-Mount PLCC-2 LED Indicator

Note:

This datasheet PDF includes multiple part numbers: ASMT-UWB1-NX3D2, ASMT-UWB1-NX302.
Please refer to the document for exact specifications by model.

Features

* High reliability package with silicone encapsulation
* Compatible with reflow soldering process
* High optical efficiency with 100 lm/W
* Available in 8-mm carrier tape with reel diameter 180 mm
* JEDEC MSL 3 product
* ESD threshold of 1000V (HBM model) per JEDEC Applicatio

Applications

* Home appliances
* Amusement machine backlighting
* Industrial lighting
* Light strips
* General signage backlighting
* Sign and display CAUTION! LEDs are ESD sensitive. Please observe appropriate precautions during handling and processing. Broadcom AV02-2936EN October 7,
