BCM81356 Datasheet - Broadcom

BCM81356 PAM-4 Duplex PHY

5 1.1 Device Functions 6 1.2 High-Speed Line-Side Interfaces 7 1.2.1 Peaking Filter and VGA 7 1.2.2 Analog-to-Digital Converter (ADC)/Equalizer/Timing Recovery7 1.3 High-Speed Host-Side Interfaces 7 1.3.1 Peaking Filter and VGA 7 1.3.2 Decision Feedback Equalizer (DFE)/Timing Recovery 7 1.4 Adaptiv.

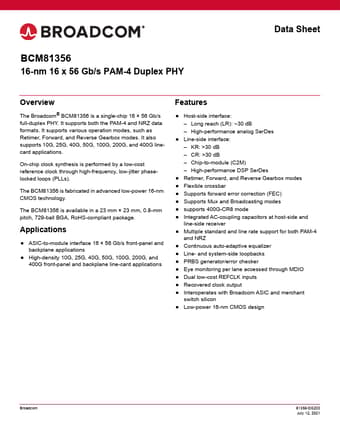

BCM81356 16-nm 16 x 56 Gb/s PAM-4 Duplex PHY Data Sheet Overview The Broadcom® BCM81356 is a single-chip 16 × 56 Gb/s full-duplex PHY. It supports both the PAM-4 and NRZ data formats. It supports various operation modes, such as Retimer, Forward, and Reverse Gearbox modes. It also supports 10G, 25G, 40G, 50G, 100G, 200G, and 400G linecard applications. On-chip clock synthesis is performed by a low-cost reference clock through high-frequency, low-jitter phaselocked loops (PLLs). The BCM81356 is.

BCM81356 Features

* Host-side interface:

* Long reach (LR): ~30 dB

* High-performance analog SerDes

* Line-side interface:

* KR: >30 dB

* CR: >30 dB

* Chip-to-module (C2M)

* High-performance DSP SerDes

* Retimer, Forward, and Reverse Gearbox modes

* Flex

BCM81356-Broadcom.pdf

BCM81356 Datasheet Preview — Preview of BCM81356 PDF

Datasheet Details

Part number:

BCM81356

Manufacturer:

Broadcom

File Size:

619.61 KB

Description:

Pam-4 duplex phy.
