HCPL-2502 Datasheet, Optocouplers, Broadcom

HCPL-2502 Features

• Optocouplers
• High speed: 1 Mb/s
• TTL compatible
• Available in 8-pin DIP, SO-8, widebody packages
• Open collector output
• Safety approval UL Recognized <

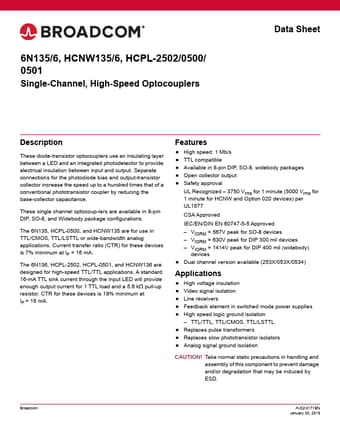

PDF File Details

Part number:

HCPL-2502

Manufacturer:

Broadcom

File Size:

733.42kb

Download:

📄 Datasheet

Description:

High-speed optocouplers. These diode-transistor optocouplers use an insulating layer between a LED and an integrated photodetector to provide electrical insul

HCPL-2502 Application

• Applications Current transfer ratio (CTR) for these devices is 7% minimum at IF = 16 mA. The 6N136, HCPL-2502, HCPL-0501, and HCNW136 are designed
