HDSM-283B - Single-Digit Surface-Mount LED Display

Product Overview

Broadcom

📥 Download Datasheet

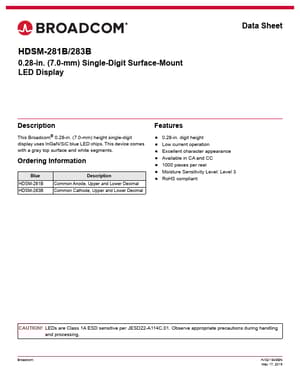

HDSM-283B Single-Digit Surface-Mount LED Display by Broadcom - Datasheet Preview — Datasheet preview – HDSM-283B

Datasheet Details

Part number	HDSM-283B
Manufacturer	Broadcom
File Size	438.62 KB
Description	Single-Digit Surface-Mount LED Display
Datasheet	HDSM-283B Datasheet
Note	This datasheet PDF includes multiple part numbers: HDSM-283B, HDSM-281B. Please refer to the document for exact specifications by model.
Additional preview pages of the HDSM-283B datasheet.

Product details

Description

This Broadcom® 0.28-in.

Features

0.28-in. digit height.
Low current operation.
Excellent character appearance.
Available in CA and CC.
1000 pieces per reel.
Moisture Sensitivity Level: Level 3.
RoHS compliant.
