HLMP-1520, HLMP-1321 - High Intensity LED Lamp

Broadcom

The HLMP-1520 by Broadcom is a High Intensity LED Lamp. Below is the official datasheet preview.

Datasheet Details

Part number	HLMP-1520, HLMP-1321
Manufacturer	Broadcom
File Size	619.87 KB
Description	High Intensity LED Lamp
Datasheet	HLMP-1321-Broadcom.pdf
Note	This datasheet PDF includes multiple part numbers: HLMP-1520, HLMP-1321. Please refer to the document for exact specifications by model.

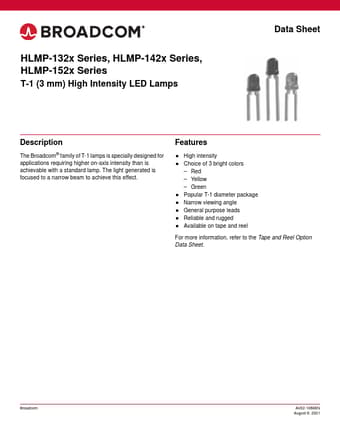

Additional preview pages of the HLMP-1520 datasheet.

The Broadcom® family of T-1 lamps is specially designed for applications requiring higher on-axis intensity than is achievable with a standard lamp.

High intensity.
Choice of 3 bright colors.
Red.
Yellow.
Green.
Popular T-1 diameter package.
Narrow viewing angle.
General purpose leads.
Reliable and rugged.
Available on tape and reel For more information, refer to the Tape and Reel Option Data Sheet. Broadcom AV02-1068EN August 6, 2021 HLMP-132x Series, HLMP-142x Series, HLMP-152x Series Data Sheet Package Dimensions 4.70 (.185) 4.19 (.165) 6.35 (.250) 5.58 (.220) Ø 3.17 (.12.
