HLMP-6720 Subminiature LED Lamps

Flat Top Package The HLMP-Pxxx Series flat top lamps use an untinted, non diffused, truncated lens to provide a wide radiation pattern that is necessary for use in backlighting applications. The flat top lamps are also ideal for use as emitters in light pipe applications. Dome Packages The HLMP-6xx.

HLMP-6720 Features

* Subminiature flat top package

* Ideal for backlighting and light piping applications

* Subminiature dome package

* Diffused dome for wide viewing angle

* Non-diffused dome for high brightness

* TTL and LSTTL compatible 5

HLMP-P005-Broadcom.pdf

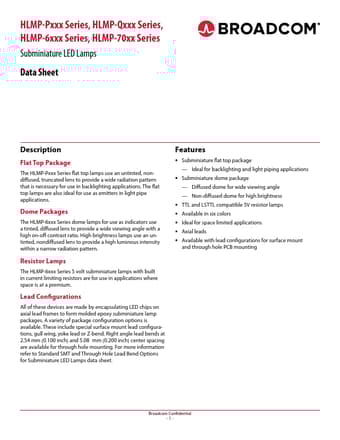

HLMP-6720 Datasheet Preview — This datasheet PDF includes multiple part numbers: HLMP-6720, HLMP-P005. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

HLMP-6720, HLMP-P005

Manufacturer:

Broadcom

File Size:

459.38 KB

Description:

Subminiature led lamps.

Note:

This datasheet PDF includes multiple part numbers: HLMP-6720, HLMP-P005.
Please refer to the document for exact specifications by model.
