HLMP-EG24-PQ0DD, HLMP-EH3B-WX0DD Datasheet - Broadcom

HLMP-EG24-PQ0DD, HLMP-EH3B-WX0DD, AlInGaP LED Lamp

HLMP-ELxx, HLMP-EHxx, HLMP-EJxx, HLMP-EGxx T-1¾ (5 mm) Precision Optical Performance AlInGaP LED Lamps Data Sheet .
These Precision Optical Performance AlInGaP LEDs provide superior light output for excellent readability in sunlight and are extremely reliable.

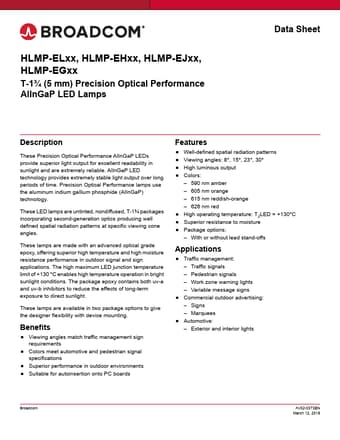

 datasheet Preview Page 1 from Datasheet4u.com

HLMP-EH3B-WX0DD-Broadcom.pdf

This datasheet PDF includes multiple part numbers: HLMP-EG24-PQ0DD, HLMP-EH3B-WX0DD. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

HLMP-EG24-PQ0DD, HLMP-EH3B-WX0DD

Manufacturer:

Broadcom

File Size:

711.84 KB

Description:

AlInGaP LED Lamp

Note:

This datasheet PDF includes multiple part numbers: HLMP-EG24-PQ0DD, HLMP-EH3B-WX0DD.
Please refer to the document for exact specifications by model.

Features

* Well-defined spatial radiation patterns
* Viewing angles: 8°, 15°, 23°, 30°
* High luminous output
* Colors:
* 590 nm amber
* 605 nm orange
* 615 nm reddish-orange
* 626 nm red
* High operating temperature: TJLED = +130°C
* Superior resistanc

Applications

* The high maximum LED junction temperature limit of +130 °C enables high temperature operation in bright sunlight conditions. The package epoxy contains both uv-a and uv-b inhibitors to reduce the effects of long-term exposure to direct sunlight. These lamps are available in two package options to g
