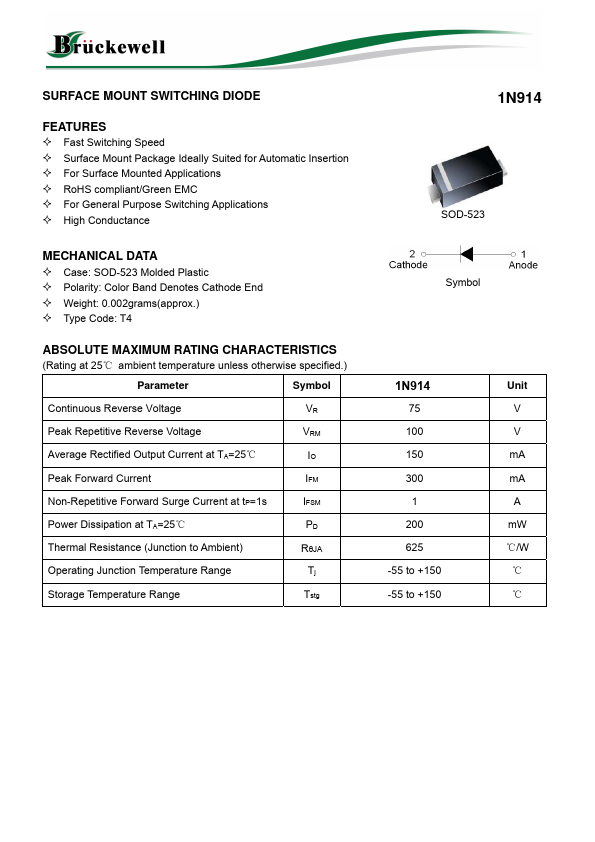

1N914 - SURFACE MOUNT SWITCHING DIODE

1N914 Description

SURFACE MOUNT SWITCHING DIODE .

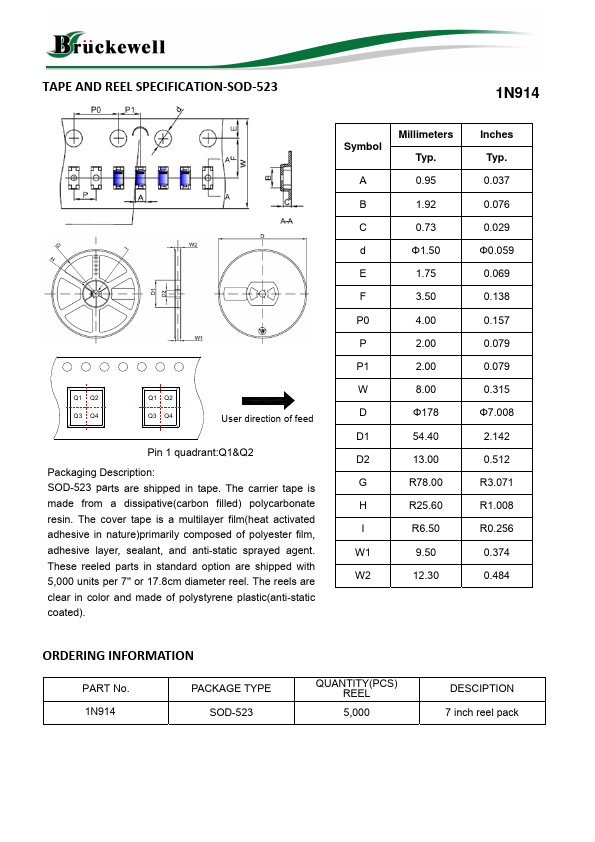

SOD-523 parts are shipped in tape.

1N914 Features

* Fast Switching Speed
* Surface Mount Package Ideally Suited for Automatic Insertion

1N914 Applications

* RoHS compliant/Green EMC
* For General Purpose Switching Applications
* High Conductance MECHANICAL DATA
* Case: SOD-523 Molded Plastic
* Polarity: Color Band Denotes Cathode End
* Weight: 0.002grams(approx. )
* Type Code: T4 ABSOLUTE MAXIMUM RATING CHARACTERISTICS (Ra

📥 Download Datasheet

Preview of 1N914 PDF

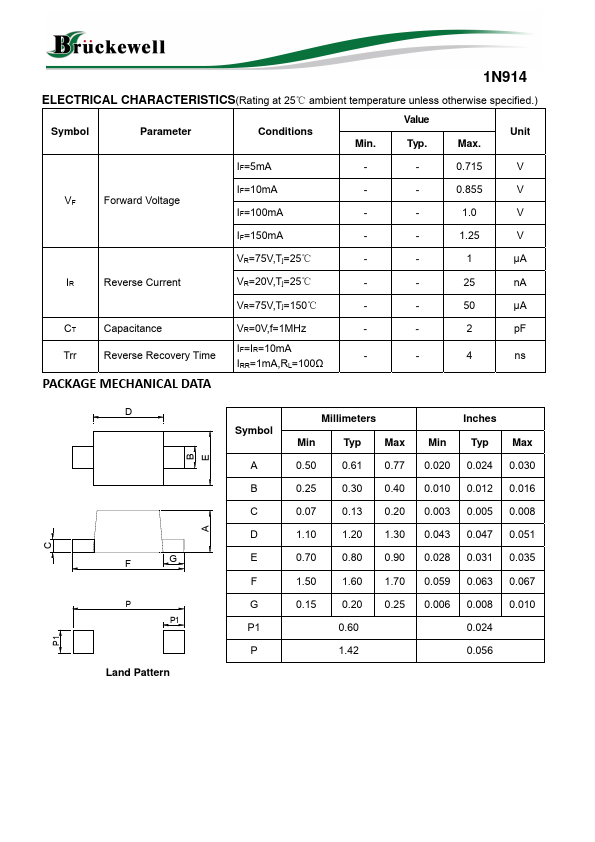

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
1N914
Manufacturer
Bruckewell
File Size
391.05 KB
Datasheet
1N914-Bruckewell.pdf
Description
SURFACE MOUNT SWITCHING DIODE
