3.0SMCJ160, 3.0SMCJ5.0 Datasheet - Bruckewell

3.0SMCJ160, 3.0SMCJ5.0, SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR

3.0SMCJ_5.0_220A Stand-off Voltage : 5.0 to 220V Peak Pulse Power : 3000 W .

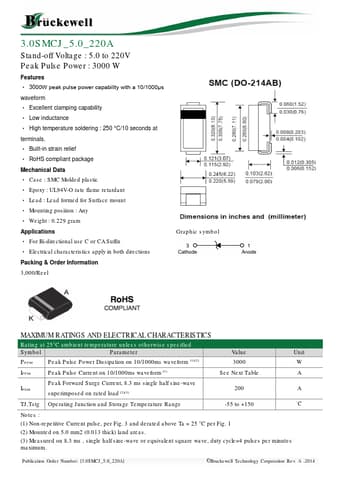

 Datasheet Preview Page 1

3.0SMCJ5.0-Bruckewell.pdf

This datasheet PDF includes multiple part numbers: 3.0SMCJ160, 3.0SMCJ5.0. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

3.0SMCJ160, 3.0SMCJ5.0

Manufacturer:

Bruckewell

File Size:

546.83 KB

Description:

SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR

Note:

This datasheet PDF includes multiple part numbers: 3.0SMCJ160, 3.0SMCJ5.0.
Please refer to the document for exact specifications by model.

Features

* 3000W peak pulse power capability with a 10/1000μs waveform
* Excellent clamping capability
* Low inductance
* High temperature soldering : 250 °C/10 seconds at terminals.
* Built-in strain relief
* RoHS compliant package Mechanical Data
* Ca

Applications

* For Bi-directional use C or CA Suffix
* Electrical characteristics apply in both directions Packing & Order Information 3,000/Reel Graphic symbol MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Rating at 25°C ambient temperature unless otherwise specified Symbol Parameter PPPM
