ESD3Z24V - Transient Voltage Suppressors

Description

components from ESD and transient voltage events.

premium.

Features

Complies with the following standards.
IEC61000-4-2.
Level 4 15 kV (air discharge).
8 kV(contact discharge).
MIL STD 883E - Method 3015-7 Class 3.
25 kV HBM (Human Body Model).
Unidirectional & Bidirectional Configuration.
Protects One Power or I/O Port.
Low Clamping Voltage.
Ultra Low Capacitance: 3pF (Typical).
RoHS compliant package.
REACH Compliant Mechanical Data.

Bruckewell

📥 Download Datasheet

Datasheet Details

Part number	ESD3Z24V
Manufacturer	Bruckewell
File Size	549.68 KB
Description	Transient Voltage Suppressors
Datasheet	ESD3Z24V Datasheet

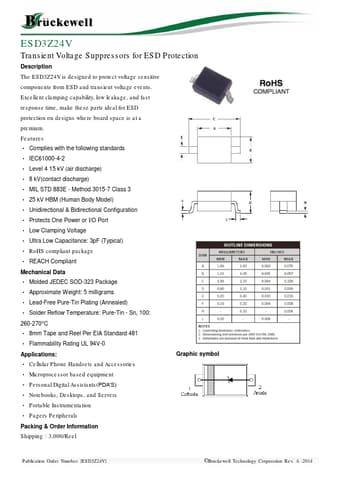

Additional preview pages of the ESD3Z24V datasheet.

📁 Similar Datasheet

ESD3Z24 - SMD Transient Voltage Suppressor (Formosa MS)
ESD3Z24BWS - ESD Protection Diode (Semtech)
ESD3Z24C-Q1 - Surface Mount Bi-Directional TVS (ANBON)
ESD3Z12 - Transient Voltage Suppressors (AK Semiconductor)
ESD3Z12 - SMD Transient Voltage Suppressor (Formosa MS)
ESD3Z12 - TRANSIENT VOLTAGE SUPPRESSORS (AiT Semiconductor)
ESD3Z12BWS - ESD Protection Diode (Semtech)
ESD3Z12C-Q1 - Surface Mount Bi-Directional TVS (ANBON)
ESD3Z15 - SMD Transient Voltage Suppressor (Formosa MS)
ESD3Z15BWS - ESD Protection Diode (Semtech)

Other Datasheets by Bruckewell

ESD3Z12C - Transient Voltage Suppressors
ESD3Z15C - Transient Voltage Suppressors
ESD3Z5C - Transient Voltage Suppressors
ESD0503 - Low Capacitance TVS Array
ESD0504 - Low Capacitance TVS Array
ESD5V0D5 - Plastic-Encapsulate Diodes
ESDF5V4 - Ultra Low Capacitance TVS Arrays
ESDFBP05VL - ESD Protection Diode

Full PDF Text Transcription

Click to expand full text

ESD3Z24V Transient Voltage Suppressors for ESD Protection Description The ESD3Z24V is designed to protect voltage sensitive components from ESD and transient voltage events. Excellent clamping capability, low leakage, and fast response time, make these parts ideal for ESD protection on designs where board space is at a premium.

Published: Apr 9, 2019 |
