MM3Z4V3, MM3Z2V0 Datasheet - Bruckewell

MM3Z4V3, MM3Z2V0, Surface mount Zener Diodes

MM3Z2V0_MM3Z75 VZ : 2.0 to 75 V PD : 300 mW .

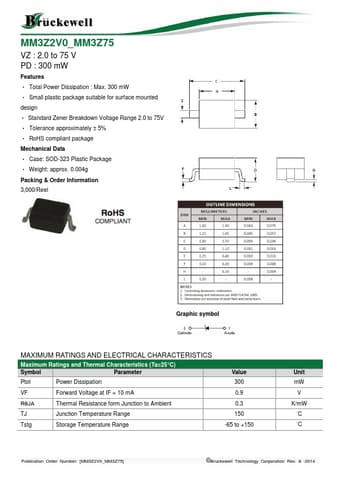

datasheet Preview Page 1 from Datasheet4u.com

MM3Z2V0-Bruckewell.pdf

MM3Z4V3 Datasheet Preview — This datasheet PDF includes multiple part numbers: MM3Z4V3, MM3Z2V0. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MM3Z4V3, MM3Z2V0

Manufacturer:

Bruckewell

File Size:

387.20 KB

Description:

Surface mount Zener Diodes

Note:

This datasheet PDF includes multiple part numbers: MM3Z4V3, MM3Z2V0.
Please refer to the document for exact specifications by model.

Features

* Total Power Dissipation : Max. 300 mW
* Small plastic package suitable for surface mounted design
* Standard Zener Breakdown Voltage Range 2.0 to 75V
* Tolerance approximately ± 5%
* RoHS compliant package Mechanical Data
* Case: SOD-323 Plastic Pack

Applications

* are based on Bruckewell’s knowledge of typical requirements that are often placed on Bruckewell products in generic applications. Such statements are not binding statements about the suitability of products for a particular application. It is the customer’s responsibility to validate that a particul
