P4SMA250, P4SMA6.8, Transient Voltage Suppressor

P4SMA Transient Voltage Suppressor VBR : 6.8 - 440 Volts PPK : 400 Watts .

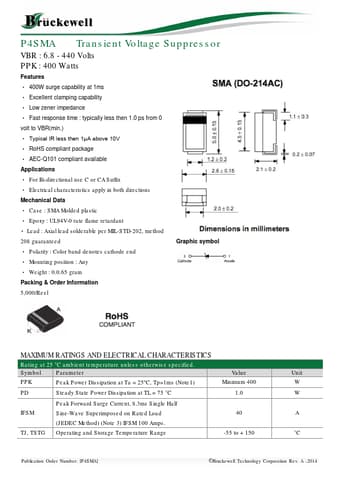

datasheet Preview Page 1 from Datasheet4u.com

P4SMA6.8-Bruckewell.pdf

P4SMA250 Datasheet Preview — This datasheet PDF includes multiple part numbers: P4SMA250, P4SMA6.8. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

P4SMA250, P4SMA6.8

Manufacturer:

Bruckewell

File Size:

542.26 KB

Description:

Transient Voltage Suppressor

Note:

This datasheet PDF includes multiple part numbers: P4SMA250, P4SMA6.8.
Please refer to the document for exact specifications by model.

Features

* 400W surge capability at 1ms
* Excellent clamping capability
* Low zener impedance
* Fast response time : typically less then 1.0 ps from 0 volt to VBR(min. )
* Typical IR less then 1μA above 10V
* RoHS compliant package
* AEC-Q101 comp

Applications

* For Bi-directional use C or CA Suffix
* Electrical characteristics apply in both directions Mechanical Data
* Case : SMA Molded plastic
* Epoxy : UL94V-0 rate flame retardant
* Lead : Axial lead solderable per MIL-STD-202, method 208 guaranteed Graph
