SS2100A, SS22A - Surface Mount Schottky Barrier Rectifiers

Bruckewell

📥 Download Datasheet

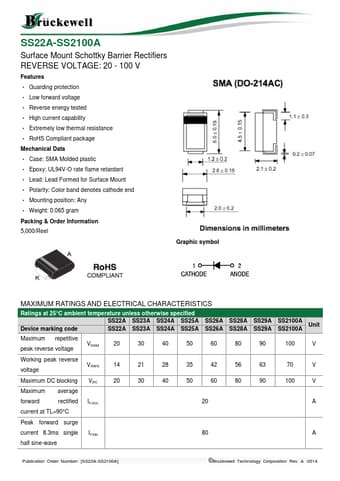

SS2100A Datasheet Preview — This datasheet PDF includes multiple part numbers: SS2100A, SS22A. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: SS2100A, SS22A
Manufacturer: Bruckewell
File Size: 329.38 KB
Datasheet: SS22A-Bruckewell.pdf
Description: Surface Mount Schottky Barrier Rectifiers
Note: This datasheet PDF includes multiple part numbers: SS2100A, SS22A.
Please refer to the document for exact specifications by model.

SS2100A Product details

Features

Guarding protection.
Low forward voltage.
Reverse energy tested.
High current capability.
Extremely low thermal resistance.
RoHS Compliant package Mechanical Data.
Case: SMA Molded plastic.
Epoxy: UL94V-O rate flame retardant.
Lead: Lead Formed for Surface Mount.
Polarity: Color band denotes cathode end.
Mounting position: Any.
Weight: 0.065 gram Packing & Order Information 5,000/Reel Gr.
