UW2453 Single Chip Transceiver

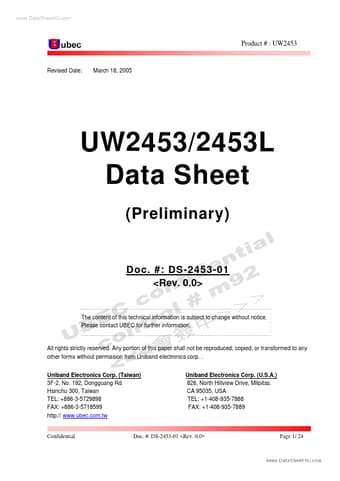

📥 Download Datasheet Datasheet Preview Page 1

Description

www.DataSheet4U.com Product # : UW2453 Revised Date: March 18, 2005 UW2453/2453L Data Sheet (Preliminary) Doc.#: DS-2453-01 The cont.
of Change Confidential Doc.

📥 Download Datasheet

Preview of UW2453 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
UW2453
Manufacturer
Bubec
File Size
844.61 KB
Datasheet
UW2453_Bubec.pdf
Description
Single Chip Transceiver

Features

* IEEE 802.11 b/g specification compliant 6, 9, 12, 18, 24, 36, 48 and 54 Mbit/s in OFDM mode 1, 2, 5.5 and 11 Mbits/s in DSSS and CCK mode 2.4 to 2.5 GHz frequency operation
* 87 dBm sensitivity at 11 Mbits/s CCK mode
* 73 dBm sensitivity at 54M bits/s OFDM mode High performance and low

Applications

* It supports data rate 6, 9, 12, 18, 24, 36, 48 and 54 Mbits/s in OFDM mode, 5.5 and 11 Mbits/s in CCK mode, 1 and 2 Mbits/s in DSSS mode. The UW2453 integrates a receiver, transmitter, VCO and PLL as well a power amplifier into a single IC. It uses direct conversion radio architecture to minimize e
