ADS802 Datasheet, Converter, Burr-Brown Corporation

ADS802 Features

• Converter q NO MISSING CODES q LOW POWER: 250mW q INTERNAL REFERENCE q WIDEBAND TRACK-AND-HOLD: 65MHz q SINGLE +5V SUPPLY APPLICATIONS q IF AND BASEBAND DIGITIZATION q DATA ACQUISITION CARDS q TE

PDF File Details

Part number:

ADS802

Manufacturer:

Burr-Brown Corporation

File Size:

471.42kb

Download:

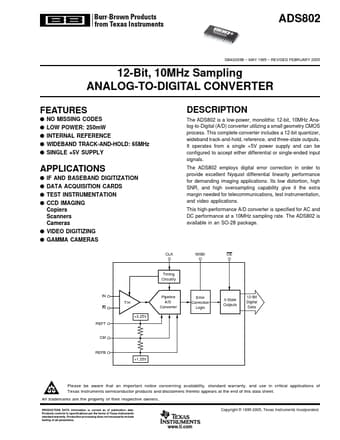

📄 Datasheet

Description:

12-bit/ 10mhz sampling analog-to-digital converter. The ADS802 is a low-power, monolithic 12-bit, 10MHz Analog-to-Digital (A/D) converter utilizing a small geometry CMOS process. This c

ADS802 Application

• Applications q IF AND BASEBAND DIGITIZATION q DATA ACQUISITION CARDS q TEST INSTRUMENTATION q CCD IMAGING Copiers Scanners Cameras q VIDEO DIGITIZIN
