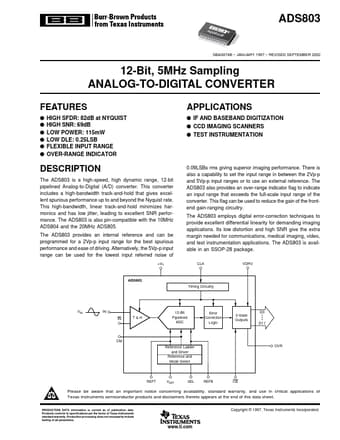

ADS803
FEATURES q HIGH SFDR: 82d B at NYQUIST q HIGH SNR: 69d B q LOW POWER: 115m W q LOW DLE: 0.25LSB q FLEXIBLE INPUT RANGE q OVER-RANGE INDICATOR
DESCRIPTION
The ADS803 is a high-speed, high dynamic range, 12-bit pipelined Analog-to-Digital (A/D) converter. This converter includes a high-bandwidth track-and-hold that gives excellent spurious performance up to and beyond the Nyquist rate. This high-bandwidth, linear track-and-hold minimizes harmonics and has low jitter, leading to excellent SNR performance. The ADS803 is also pin-patible with the 10MHz ADS804 and the 20MHz ADS805.
The ADS803 provides an internal reference and can be programmed for a 2Vp-p input range for the best spurious performance and ease of driving. Alternatively, the 5Vp-p input range can be used for the lowest input referred noise of
+VS
APPLICATIONS q IF AND BASEBAND DIGITIZATION q CCD IMAGING SCANNERS q TEST INSTRUMENTATION
0.09LSBs rms giving superior imaging performance. There is also a capability to set the...
