AFE1105, AFE1105_Burr - HDSL/MDSL ANALOG FRONT END

Burr-Brown Corporation

📥 Download Datasheet

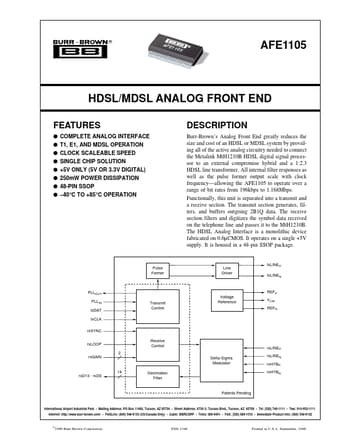

AFE1105 Datasheet Preview — This datasheet PDF includes multiple part numbers: AFE1105, AFE1105_Burr. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	AFE1105, AFE1105_Burr
Manufacturer	Burr-Brown Corporation
File Size	206.23 KB
Description	HDSL/MDSL ANALOG FRONT END
Datasheet	AFE1105_Burr-BrownCorporation.pdf
Note	This datasheet PDF includes multiple part numbers: AFE1105, AFE1105_Burr. Please refer to the document for exact specifications by model.

AFE1105 Product details

Description

Burr-Brown’s Analog Front End greatly reduces the size and cost of an HDSL or MDSL system by providing all of the active analog circuitry needed to connect the Metalink MtH1210B HDSL digital signal processor to an external compromise hybrid and a 1:2.3 HDSL line transformer. allowing the AFE1105 to operate over a range of bit rates from 196kbps to 1.168Mbps.

Features
