DAC8555, DAC8555_Burr VOLTAGE OUTPUT DIGITAL-TO-ANALOG CONVERTER

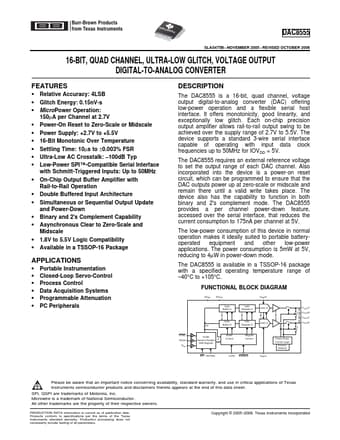

📥 Download Datasheet Datasheet Preview Page 1

Description

BurrĆBrown Products from Texas Instruments DAC8555 DAC8555 SLAS475B * NOVEMBER 2005 * REVISED OCTOBER 2006 16-BIT, QUAD CHANNEL, UL.
The DAC8555 is a 16-bit, quad channel, voltage output digital-to-analog converter (DAC) offering low-power operation and a flexible serial host interf.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: DAC8555, DAC8555_Burr. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
DAC8555, DAC8555_Burr
Manufacturer
Burr-Brown Corporation
File Size
0.99 MB
Datasheet
DAC8555_Burr-BrownCorporation.pdf
Description
VOLTAGE OUTPUT DIGITAL-TO-ANALOG CONVERTER
Note
This datasheet PDF includes multiple part numbers: DAC8555, DAC8555_Burr.
Please refer to the document for exact specifications by model.

Features

* Relative Accuracy: 4LSB
* Glitch Energy: 0.15nV-s
* MicroPower Operation: 150µA per Channel at 2.7V
* Power-On Reset to Zero-Scale or Midscale
* Power Supply: +2.7V to +5.5V
* 16-Bit Monotonic Over Temperature
* Settling Time: 10µs to ±0.003%

Applications

* Portable Instrumentation
* Closed-Loop Servo-Control
* Process Control
* Data Acquisition Systems
* Programmable Attenuation
