DSP101 - ANALOG-TO-DIGITAL CONVERTERS

This page provides the datasheet information for the DSP101, a member of the DSP101_Burr ANALOG-TO-DIGITAL CONVERTERS family.

Description

The DSP101 and DSP102 are high performance sampling analog-to-digital converters designed for simplicity of use with modern digital signal processing ICs.

Both are complete with all interface logic for use directly with DSP ICs, and provide full sampling and conversion at rates up to 200kHz.

Features

  • q ZERO-CHIP.

📥 Download Datasheet

Datasheet preview – DSP101

Datasheet Details

Part number DSP101
Manufacturer Burr-Brown Corporation
File Size 252.63 KB
Description ANALOG-TO-DIGITAL CONVERTERS
Datasheet download datasheet DSP101 Datasheet
Additional preview pages of the DSP101 datasheet.

📁 Similar Datasheet

Other Datasheets by Burr-Brown Corporation
  • DSP102 - ANALOG-TO-DIGITAL CONVERTERS
  • DSP201 - DSP-Compatible Single/Dual DIGITAL-TO-ANALOG CONVERTERS
  • DSP202 - DSP-Compatible Single/Dual DIGITAL-TO-ANALOG CONVERTERS

Full PDF Text Transcription

Click to expand full text

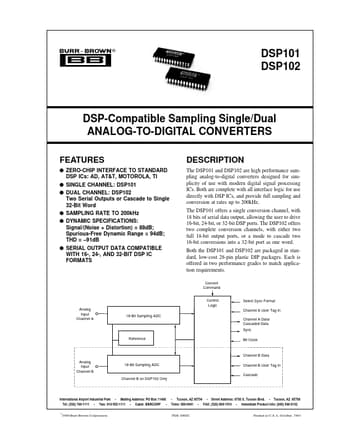

® DSP101 DSP102 DSP-Compatible Sampling Single/Dual ANALOG-TO-DIGITAL CONVERTERS FEATURES q ZERO-CHIP INTERFACE TO STANDARD DSP ICs: AD, AT&T, MOTOROLA, TI q SINGLE CHANNEL: DSP101 q DUAL CHANNEL: DSP102 Two Serial Outputs or Cascade to Single 32-Bit Word q SAMPLING RATE TO 200kHz q DYNAMIC SPECIFICATIONS: Signal/(Noise + Distortion) = 88dB; Spurious-Free Dynamic Range = 94dB; THD = –91dB q SERIAL OUTPUT DATA COMPATIBLE WITH 16-, 24-, AND 32-BIT DSP IC FORMATS DESCRIPTION The DSP101 and DSP102 are high performance sampling analog-to-digital converters designed for simplicity of use with modern digital signal processing ICs. Both are complete with all interface logic for use directly with DSP ICs, and provide full sampling and conversion at rates up to 200kHz.
