OPA2725 Datasheet - Burr-Brown Corporation

OPA2725 (OPA725 - OPA726) 12V CMOS Operational Amplifier

The OPA725 and OPA726 series op amps use a state-of-the-art 12V analog CMOS process, and combine outstanding ac performance with low bias current and excellent CMRR, PSRR, and AOL. The 20MHz Gain-Bandwidth (GBW) Product is achieved by using a proprietary and patent-pending output stage design. These.

OPA2725 Features

* D D D D D D D D D D D D D D D D D D D D BANDWIDTH: 20MHz SLEW RATE: 30V/µs FAST 16-BIT SETTLING TIME LOW NOISE: 6nV/√Hz (typ) at 100kHz EXCELLENT CMRR, PSRR, and AOL RAIL-TO-RAIL OUTPUT CM RANGE INCLUDES GND THD+N: 0.0003% (typ) at 1kHz QUIESCENT CURRENT: 5.5mA/ch (max) SUPPLY VOLTAGE: 4V to 12V SHU

OPA2725 Datasheet (458.31 KB)

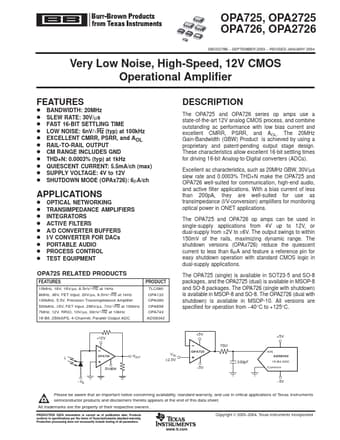

Preview of OPA2725 PDF
OPA2725 Datasheet Preview Page 2 OPA2725 Datasheet Preview Page 3

Datasheet Details

Part number:

OPA2725

Manufacturer:

Burr-Brown Corporation

File Size:

458.31 KB

Description:

(opa725 - opa726) 12v cmos operational amplifier.
