OPA726, OPA726_Burr Datasheet - Burr-Brown Corporation

OPA726 (OPA725 - OPA726) 12V CMOS Operational Amplifier

The OPA725 and OPA726 series op amps use a state-of-the-art 12V analog CMOS process, and combine outstanding ac performance with low bias current and excellent CMRR, PSRR, and AOL. The 20MHz Gain-Bandwidth (GBW) Product is achieved by using a proprietary and patent-pending output stage design. These.

OPA726 Features

* D D D D D D D D D D D D D D D D D D D D BANDWIDTH: 20MHz SLEW RATE: 30V/µs FAST 16-BIT SETTLING TIME LOW NOISE: 6nV/√Hz (typ) at 100kHz EXCELLENT CMRR, PSRR, and AOL RAIL-TO-RAIL OUTPUT CM RANGE INCLUDES GND THD+N: 0.0003% (typ) at 1kHz QUIESCENT CURRENT: 5.5mA/ch (max) SUPPLY VOLTAGE: 4V to 12V SHU

OPA726_Burr-BrownCorporation.pdf

This datasheet PDF includes multiple part numbers: OPA726, OPA726_Burr. Please refer to the document for exact specifications by model.

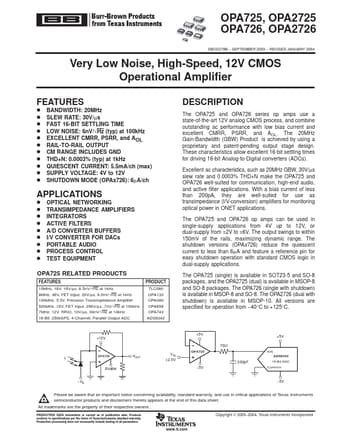

OPA726 Datasheet Preview Page 2 OPA726 Datasheet Preview Page 3

Datasheet Details

Part number:

OPA726, OPA726_Burr

Manufacturer:

Burr-Brown Corporation

File Size:

458.31 KB

Description:

(opa725 - opa726) 12v cmos operational amplifier.

Note:

This datasheet PDF includes multiple part numbers: OPA726, OPA726_Burr.
Please refer to the document for exact specifications by model.
