OPA727 High Precision CMOS Operational Amplifier

The OPA727 and OPA728 series op amps use a state-of-the-art 12V analog CMOS process and e-trim, a package-level trim, offering outstanding dc precision and ac performance. The extremely low offset (150µV max) and drift (1.5µV/°C) are achieved by trimming the IC digitally after packaging to avoid the.

OPA727 Features

* OFFSET: 15µV (typ), 150µV (max)

* DRIFT: 0.3µV/°C (typ), 1.5µV/°C (max)

* BANDWIDTH: 20MHz

* SLEW RATE: 30V/µs

* BIAS CURRENT: 500pA (max)

* LOW NOISE: 6nV/√Hz at 100kHz

* THD+N: 0.0003% at 1kHz

* QUIESCENT CURRENT: 4.3mA/ch

OPA727 Datasheet (1.69 MB)

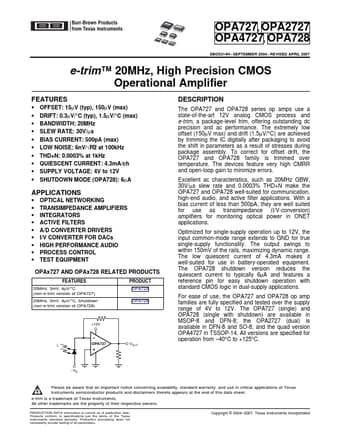

OPA727 Datasheet Preview — Preview of OPA727 PDF

Datasheet Details

Part number:

OPA727

Manufacturer:

Burr-Brown Corporation

File Size:

1.69 MB

Description:

High precision cmos operational amplifier.
