VSP3010 12-Bit/ 12MHz CCD/CIS SIGNAL PROCESSOR

The VSP3010 is a complete, three-channel image signal processor for Charge Coupled Device (CCD) or Contact Image Sensor (CIS) systems. Each channel contains sensor signal sampling, Black Level adjustment and a programmable gain amplifier. The three inputs are multiplexed into a high speed, 12-bit an.

VSP3010 Features

* q 12-BIT, 12MHz A/D CONVERTER q GUARANTEED NO MISSING CODES q 3-CHANNEL, 4MHz COLOR SCAN MODE: Correlated Double Samplers 8-Bit Offset Adjustment DACs 0dB to +13dB PGAs q q q q q A/D INPUT MONITOR INTERNAL VOLTAGE REFERENCE SINGLE +5V SUPPLY 3V OR 5V DIGITAL OUTPUT LOW POWER: 500mW typ (CCD Mode) D

VSP3010_Burr-BrownCorporation.pdf

This datasheet PDF includes multiple part numbers: VSP3010, VSP3010_Burr. Please refer to the document for exact specifications by model.

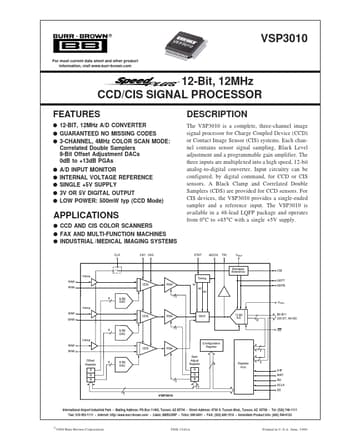

VSP3010 Datasheet Preview Page 2 VSP3010 Datasheet Preview Page 3

Datasheet Details

Part number:

VSP3010, VSP3010_Burr

Manufacturer:

Burr-Brown Corporation

File Size:

199.27 KB

Description:

12-bit/ 12mhz ccd/cis signal processor.

Note:

This datasheet PDF includes multiple part numbers: VSP3010, VSP3010_Burr.
Please refer to the document for exact specifications by model.
