DIX4192 Integrated Digital Audio Interface Receiver and Transmitter

The DIX4192 is a highly-integrated CMOS device designed for use in professional and broadcast digital audio systems. The DIX4192 combines a digital audio interface receiver (DIR) and transmitter (DIT), two audio serial ports, and flexible distribution logic for interconnection of the function block .

DIX4192 Features

* Digital Audio Interface Transmitter (DIT)

* Supports Sampling Rates Up to 216kHz

* Includes Differential Line Driver and CMOS Buffered Outputs

* Block-Sized Data Buffers for Both Channel Status and User Data

* Status Registers and Interrupt Generation for Fl

DIX4192_Burr-Brown.pdf

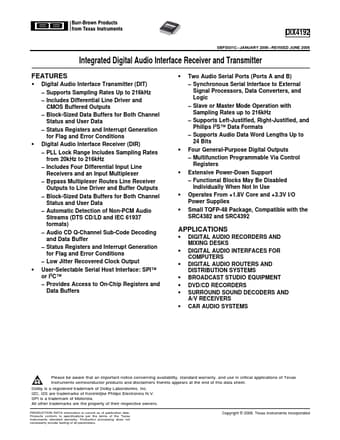

DIX4192 Datasheet Preview — This datasheet PDF includes multiple part numbers: DIX4192, DIX4192_Burr. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

DIX4192, DIX4192_Burr

Manufacturer:

Burr-Brown

File Size:

823.80 KB

Description:

Integrated digital audio interface receiver and transmitter.

Note:

This datasheet PDF includes multiple part numbers: DIX4192, DIX4192_Burr.
Please refer to the document for exact specifications by model.
