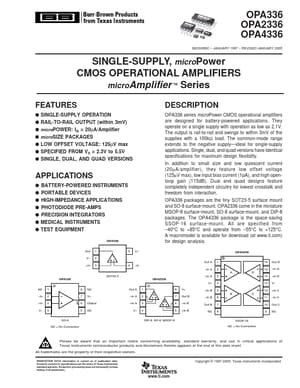

Part number: OPA336
Manufacturer: Burr-Brown
File Size: 1.81MB
Download: 📄 Datasheet
Description: CMOS OPERATIONAL AMPLIFIERS
q SINGLE-SUPPLY OPERATION q RAIL-TO-RAIL OUTPUT (within 3mV) q microPOWER: IQ = 20µA/Amplifier q microSIZE PACKAGES q LOW OFFSET VOLTAGE: 125µV max q SPECIFIED FROM VS = .
q BATTERY-POWERED INSTRUMENTS q PORTABLE DEVICES q HIGH-IMPEDANCE APPLICATIONS q PHOTODIODE PRE-AMPS q PRECISION INTEGRA.
OPA336 series microPower CMOS operational amplifiers are designed for battery-powered applications. They operate on a single supply with operation as low as 2.1V. The output is rail-to-rail and swings to within 3mV of the supplies with a 100kΩ load. .
Image gallery
