PCM1791A - Audio Stereo Digital-to-Analog Converter

This page provides the datasheet information for the PCM1791A, a member of the PCM1791A-Burr Audio Stereo Digital-to-Analog Converter family.

Description

The PCM1791A is a monolithic CMOS integrated circuit that includes stereo digital-to-analog converters and support circuitry in a small 28-lead SSOP package.

Features

  • D 24-Bit Resolution D Analog Performance:.
  • Dynamic Range: 113 dB.
  • THD+N: 0.001%.
  • Full-Scale Output: 2.1 V RMS (at Postamp) D Differential Voltage Output: 3.2 Vp-p D 8× Oversampling Digital Filter:.
  • Stop-Band Attenuation:.
  • 82 dB.
  • Pass-Band Ripple: ±0.002 dB D Sampling Frequency: 10 kHz to 200 kHz D System Clock: 128, 192, 256, 384, 512, or 768 fS With Autodetect D Accepts 16-, 20-, and 24-Bit Audio Data D PCM Data Formats: Standard, I2S, and Le.

📥 Download Datasheet

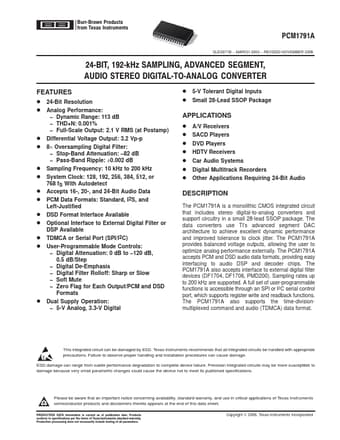

Datasheet preview – PCM1791A
