PCM1794 - Audio Stereo Digital-to-Analog Converter

This page provides the datasheet information for the PCM1794, a member of the PCM1794-Burr Audio Stereo Digital-to-Analog Converter family.

Description

The PCM1794 is a monolithic CMOS integrated circuit that includes stereo digital-to-analog converters and support circuitry in a small 28-lead SSOP package.

The data converters use TI’s advanced segment DAC architecture to achieve excellent dynamic performance and improved tolerance to clock jitter.

Features

  • D 24-Bit Resolution D Analog Performance:.
  • Dynamic Range: 132 dB (9 V RMS, Mono) 129 dB (4.5 V RMS, Stereo) 127 dB (2 V RMS, Stereo).
  • THD+N: 0.0004% D Differential Current Output: 7.8 mA p-p D 8× Oversampling Digital Filter:.
  • Stop-Band Attenuation:.
  • 130 dB.
  • Pass-Band Ripple: ±0.00001 dB D Sampling Frequency: 10 kHz to 200 kHz D System Clock: 128, 192, 256, 384, 512, or 768 fS With Autodetect D Accepts 16- and 24-Bit Audio Data D PCM Data Formats: Stand.

📥 Download Datasheet

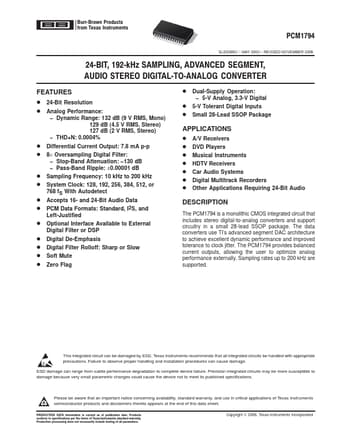

Datasheet preview – PCM1794

Datasheet Details

Part number PCM1794
Manufacturer Burr-Brown
File Size 423.26 KB
Description Audio Stereo Digital-to-Analog Converter
Datasheet download datasheet PCM1794 Datasheet
Additional preview pages of the PCM1794 datasheet.

📁 Similar Datasheet

  • PCM1794A - Audio Stereo Digital-to-Analog Converter (Texas Instruments)
  • PCM1794A-Q1 - Audio Stereo Digital-to-Analog Converter (Texas Instruments)
  • PCM1795 - Stereo Audio Digital-to-Analog Converter (Texas Instruments)
  • PCM1796 - AUDIO STEREO DIGITAL TO ANALOG CONVERTER (Burr-Brown Corporation)
  • PCM1798 - Audio Stereo Digital-to-Analog Converter (Texas Instruments)
  • PCM1700P - Dual 18-Bit Monolithic Audio DIGITAL-TO-ANALOG CONVERTER (Burr-Brown Corporation)
  • PCM1700U - Dual 18-Bit Monolithic Audio DIGITAL-TO-ANALOG CONVERTER (Burr-Brown Corporation)
  • PCM1701 - 18-Bit Serial Input D/A Converter (ETC)
  • PCM1702P - BiCMOS Advanced Sign Magnitude 20-Bit DIGITAL-TO-ANALOG CONVERTER (Burr-Brown Corporation)
  • PCM1702U - BiCMOS Advanced Sign Magnitude 20-Bit DIGITAL-TO-ANALOG CONVERTER (Burr-Brown Corporation)
Other Datasheets by Burr-Brown
  • PCM1794A - audio stereo digital-to-analog converter
  • PCM1791A - Audio Stereo Digital-to-Analog Converter
  • PCM1792 - Audio Stereo Digital-to-Analog Converter
  • PCM1792A - audio stereo digital-to-analog converter
  • PCM1793 - Audio Stereo Digital-to-Analog Converter
  • PCM1798 - AUDIO STEREO DIGITAL TO ANALOG CONVERTER
  • PCM1730 - Audio Stereo Digital-to-Analog Conver
  • PCM1741 - DIGITAL-TO-ANALOG CONVERTER

Full PDF Text Transcription

Click to expand full text
BurrĆBrown Products from Texas Instruments PCM1794 SLES080C – MAY 2003 – REVISED NOVEMBER 2006 24ĆBIT, 192ĆkHz SAMPLING, ADVANCED SEGMENT, AUDIO STEREO DIGITALĆTOĆANALOG CONVERTER FEATURES D 24-Bit Resolution D Analog Performance: − Dynamic Range: 132 dB (9 V RMS, Mono) 129 dB (4.5 V RMS, Stereo) 127 dB (2 V RMS, Stereo) − THD+N: 0.0004% D Differential Current Output: 7.8 mA p-p D 8× Oversampling Digital Filter: − Stop-Band Attenuation: –130 dB − Pass-Band Ripple: ±0.
