PCM3008, PCM3008-Burr - SINGLE-ENDED ANALOG INPUT/OUTPUT STEREO AUDIO CODEC

PCM3008 Description

PCM3008 SLAS332 * APRIL 2001 LOW POWER AND LOW VOLTAGE 16-BIT, SINGLE-ENDED ANALOG INPUT/OUTPUT STEREO AUDIO CODEC .
The PCM3008 is a low cost single chip 16-bit stereo audio codec with single-ended analog voltage input and output.

PCM3008 Features

* D 16-Bit Delta-Sigma ADC and DAC D Stereo ADC:
* Single-Ended Voltage Input
* Anti-Aliasing Filter Included
* High Performance
* THD+N:
* 84 dB
* SNR: 88 dB
* Dynamic Range: 88 dB
* 1/64× Decimation Digital Filter
* Passband Ripp

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: PCM3008, PCM3008-Burr. Please refer to the document for exact specifications by model.

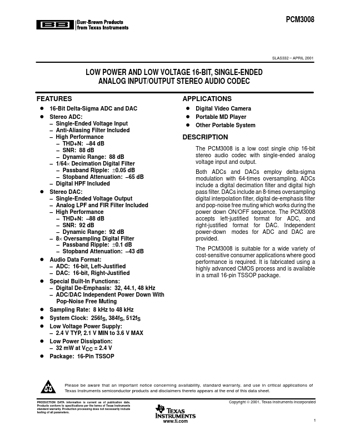

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
PCM3008, PCM3008-Burr
Manufacturer
Burr-Brown
File Size
1.04 MB
Datasheet
PCM3008-Burr-Brown.pdf
Description
SINGLE-ENDED ANALOG INPUT/OUTPUT STEREO AUDIO CODEC
Note
This datasheet PDF includes multiple part numbers: PCM3008, PCM3008-Burr.
Please refer to the document for exact specifications by model.
