SB2080, SB2020 20.0 AMP SCHOTTKY BARRIER RECTIFIERS

SB2080 Description

SB2020 THRU SB20100 20.0 AMP SCHOTTKY BARRIER RECTIFIERS o .

SB2080 Features

* Low forward voltage drop
* High current capability
* High reliability
* High surge current capability
* Epitaxial construction
* Lead Free Finish/RoHS Compliant MECHANICAL DATA
* Case: Molded plastic
* Epoxy: UL 94V-0 rate flame retardant
* Lead: Lead solderable

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SB2080, SB2020. Please refer to the document for exact specifications by model.

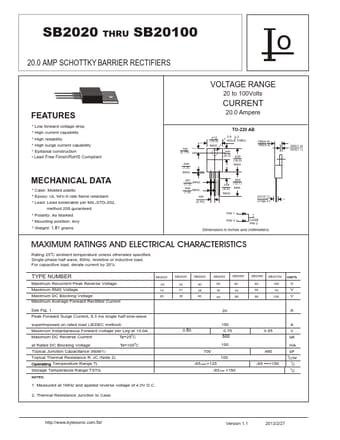

datasheet Preview Page 2

Datasheet Details

Part number
SB2080, SB2020
Manufacturer
Byte
File Size
316.44 KB
Datasheet
SB2020-Byte.pdf
Description
20.0 AMP SCHOTTKY BARRIER RECTIFIERS
Note
This datasheet PDF includes multiple part numbers: SB2080, SB2020.
Please refer to the document for exact specifications by model.
