MB254 Datasheet (MB2505 - MB2510) SINGLE PHASE 25 AMP BRIDGE RECTIFIERS

Manufacturer: Bytes

Overview: www.DataSheet4U.com MB2505 THRU MB2510 SINGLE PHASE 25 AMP BRIDGE RECTIFIERS VOLTAGE RANGE 50 to 1000 Volts CURRENT 25.0 Amperes MB-25 .452 MAX. (11.5) .480(12.2) .425(10.

Download the MB254 datasheet PDF. This datasheet also includes the MB2505 variant, as both parts are published together in a single manufacturer document.

📥 Download Datasheet

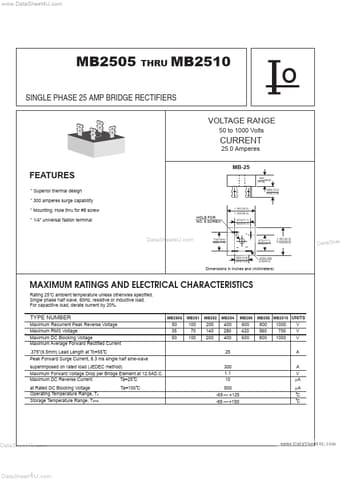

MB254 (mb2505 - mb2510) single phase 25 amp bridge rectifiers by Bytes - Datasheet Preview

Datasheet Details

Part number	MB254
Manufacturer	Bytes
File Size	316.04 KB
Description	(MB2505 - MB2510) SINGLE PHASE 25 AMP BRIDGE RECTIFIERS
Download	MB254 Download (PDF)

Key Features

Superior thermal design.
300 amperes surge capability.
Mounting: Hole thru for #8 screw.
1/4" universal faston terminal HOLE FOR NO. 8 SCREW 1.181(30.0) 1.102(28.0) .673(17.1) .633(16.1) AC + .673(17.1) .633(16.1) AC DataSheet4U. com .732(18.6) .692(17.6) 1.181(30.0) 1.102(28.0) DataShee .582(14.8) .543(13.8) .033X.250 (0.8X6.4) Dimensions in inches and (millimeters).
