SA26A - 500 WATT PEAK POWER TRANSIENT VOLTAGE SUPPRESSORS

Bytes

📥 Download Datasheet

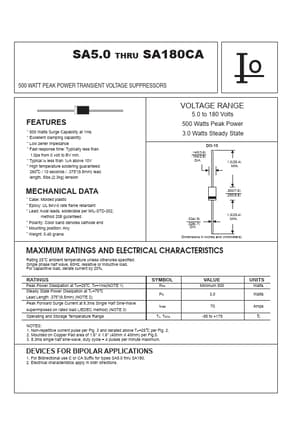

SA26A Datasheet Preview — Preview of SA26A PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SA26A
Manufacturer	Bytes
File Size	313.65 KB
Description	500 WATT PEAK POWER TRANSIENT VOLTAGE SUPPRESSORS
Datasheet	SA26A_Bytes.pdf

SA26A Product details

Features

500 Watts Surge Capability at 1ms.
Excellent clamping capability.
Low zener impedance.
Fast response time: Typically less than 1.0ps from 0 volt to BV min.
Typical IR less than 1µA above 10V.
High temperature soldering guaranteed: 260 C / 10 seconds / .375"(9.5mm) lead length, 5lbs. (2.3kg) tension 500 Watts Peak Power 3.0 Watts Steady State DO-15 .140(3.6) .104(2.6) DIA. 1.0(25.4) MIN.
