SA45 500 WATT PEAK POWER TRANSIENT VOLTAGE SUPPRESSORS

SA45 Description

SA5.0 THRU SA180CA 500 WATT PEAK POWER TRANSIENT VOLTAGE SUPPRESSORS VOLTAGE RANGE 5.0 to 180 Volts .

SA45 Features

* 500 Watts Surge Capability at 1ms
* Excellent clamping capability
* Low zener impedance
* Fast response time: Typically less than 1.0ps from 0 volt to BV min.
* Typical IR less than 1µA above 10V
* High temperature soldering guaranteed: 260 C / 10 seconds / .375"(9.5mm) lea

SA45 Applications

* 1. For Bidirectional use C or CA Suffix for types SA5.0 thru SA180. 2. Electrical characteristics apply in both directions. 134 RATING AND CHARACTERISTIC CURVES (SA5.0 THRU SA180CA) FIG.1-PEAK PULSE POWER DERATING CURVE Non-Repetitive Pulse Waveform Shown in Fig. 3 TA=25 C 10 PEAK PULSE POWER(P PP

📥 Download Datasheet

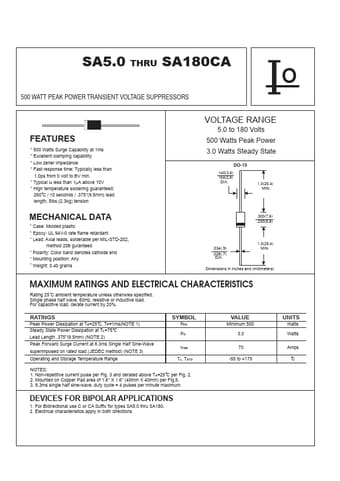

Preview of SA45 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SA45
Manufacturer
Bytes
File Size
313.65 KB
Datasheet
SA45_Bytes.pdf
Description
500 WATT PEAK POWER TRANSIENT VOLTAGE SUPPRESSORS
